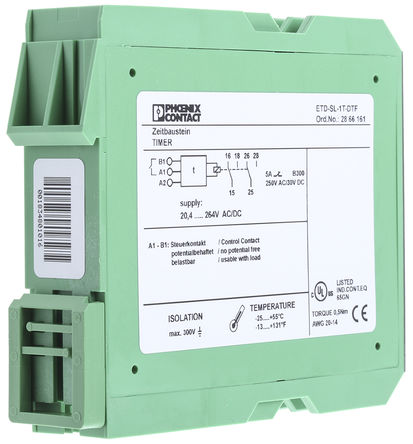

Image is for your reference only,please check specifications for details
- 2866161 - Phoenix
-
Manufacturer:Phoenix
-
ManyChip's Part#:MC69950231
-
Category:Time Delay Relay, Timing Relay
-
Package:Green
-
Datasheet:Datasheet 3D Model
-
Description:Реле времени 24–240 В постоянного тока, 24–240 В переменного тока, DPDT (22,5 × 113 × 90 мм), DIN-рейка
-
Stock Locations:
-
Availability:49 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 147.19
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Реле времени 24–240 В постоянного тока, 24–240 В переменного тока, DPDT (22,5 × 113 × 90 мм), DIN-рейка
2866161 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail, Screw Terminals |
| Case/Package | Green |
| Number of Contacts | 2 Contact |
| Coil Voltage (AC) | 24V ~ 240V |
| Current Rating (Max) | 3 A |
| Coil Voltage (DC) | 24V ~ 240V |
| Operating Temperature (Max) | 55 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Show | |
| Size-Length | 90 mm |
| Size-Width | 22.5 mm |
| Size-Height | 90 mm |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536490050 |
| ECCN Code | EAR99 |
