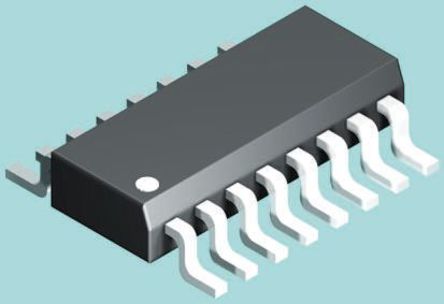

- ISO7231CDW - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC18617561
-
Category:Interface Isolator, Digital Isolator
-
Package:SOIC-16
-
Datasheet:Datasheet 3D Model
-
Description:Digital Isolator, 3Channel, 42ns, 3.15V, 5.5V, SOIC, 16Pins
-
Stock Locations:
-
Availability:78 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.98
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ISO7231CDW is a triple-channel Digital Isolator with multiple channel configurations and output enable functions. This device has logic input and output buffers separated by TI"s silicon dioxide (SiO2) isolation barrier. Used in conjunction with isolated power supplies, it blocks high voltage, isolate grounds and prevent noise currents on a data bus or other circuits from entering the local ground and interfering with or damaging sensitive circuitry.
- 1ns Maximum low channel-to-channel output skew
- 2ns Maximum low pulse-width distortion (PWD)
- 1ns Typical at 150Mbps low jitter content
- Typical 25-year life at rated working voltage
- 4kV ESD Protection high electromagnetic immunity
- Green product and no Sb/Br
- Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
ISO7231CDW Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | SOIC-16 |
| Supply Voltage (DC) | 3.30 V, 5.00 V |
| Rise/Fall Time | 2 ns |
| Supply Current | 17.5 mA |
| Number of Channels | 3 Channel |
| Number of Positions | 16 Position |
| Data Rate | 25.0 Mbps |
| Rise Time | 2 ns |
| Isolation Voltage | 2500 Vrms |
| Thermal Shutdown | No |
| Input Current (Min) | 10 μA |
| Maximum Forward Voltage (Max) | 5.5 V |
| Fall Time (Max) | 2 ns |
| Fall Time (Max) | 2 ns |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 3.15V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 3.15 V |
| Show | |
| Size-Length | 10.5 mm |
| Size-Width | 7.6 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
