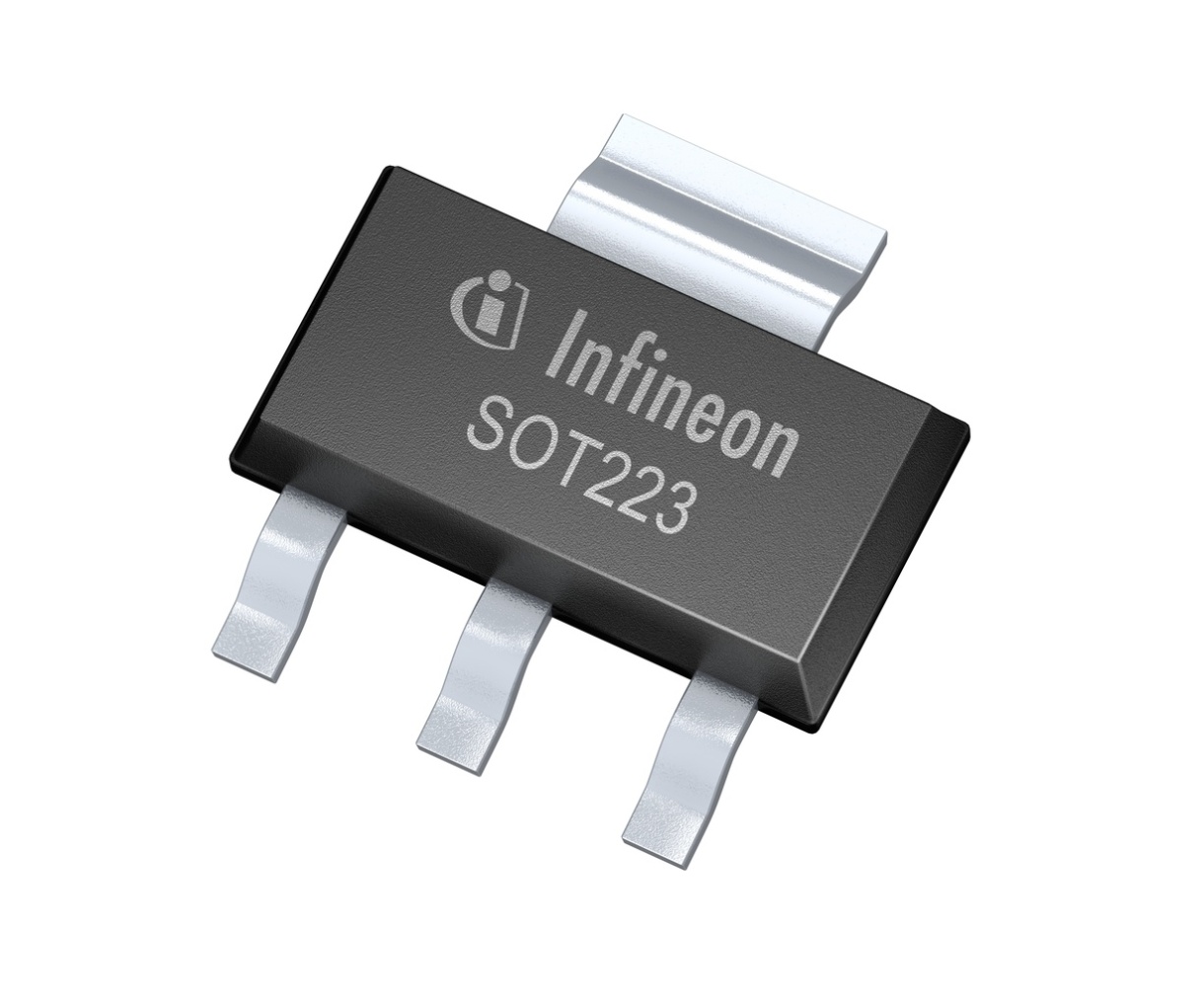

Image is for your reference only,please check specifications for details

ISP452 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC11207378
Category:
FET Driver
Package:
SOT-223-4
Datasheet:
Datasheet 3D Model
Description:
Infineon ISP452 Intelligent Power Switch, High Side, 0.7A, -5 → 40V, 4Pin, SOT-223
Stock Locations:
Availability:
260 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.91

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ISP452 is a Smart Power high-side vertical power FET Switch with charge pump, ground referenced CMOS compatible input and monolithically integrated in Smart SIPMOS® technology for industrial applications. It provides embedded protection functions and clamp of negative output voltage with inductive loads.
Short-circuit protection
Input protection
Over-temperature protection with hysteresis
Overload protection
Overvoltage protection
Switching inductive load
Under-voltage shutdown
Maximum current internally limited
ESD sensitive device, take proper precaution while handling the device.

Show

ISP452 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SOT-223-4
Supply Voltage (DC)	5.00V (min)
Power Rating	1.8 W
Number of Outputs	1 Output
Output Current	700 mA
Number of Channels	1 Channel
Number of Positions	4 Position
Power Dissipation	1.8 W
Output Current (Max)	700 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-30 ℃
Supply Voltage	5.34 VDC
	Show
Size-Length	6.5 mm
Size-Width	3.5 mm
Size-Height	1.6 mm
Operating Temperature	-30℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
