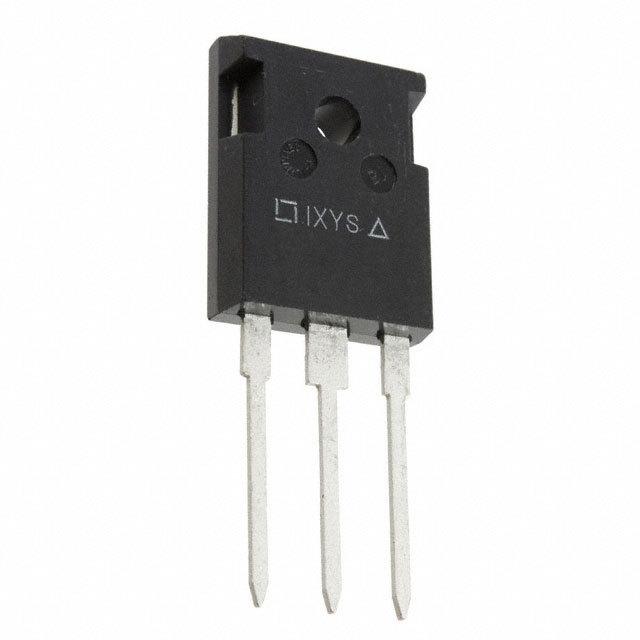

Image is for your reference only,please check specifications for details

IXFH12N100F - IXYS Semiconductor
Manufacturer:
IXYS Semiconductor
ManyChip's Part#:
MC86650433
Category:
High Voltage MOS Transistor
Package:
TO-3-3
Datasheet:
Datasheet 3D Model
Description:
IXYS SEMICONDUCTOR IXFH12N100F Power MOSFET, N Channel, 12A, 1kV, 1.05Ω, 10V, 3V
Stock Locations:
Availability:
275 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 12.42

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The IXFH12N100F is a 1000V N-channel Enhancement Mode Power MOSFET designed for laser driver, induction heating, switch mode power supplies and switching industrial applications.
Double metal process for low gate resistance
Rugged polysilicon gate cell structure
Unclamped Inductive Switching (UIS) rated
Low inductance offers easy to drive and protect
Fast intrinsic rectifier
Space-saving s
High power density

Show

IXFH12N100F Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-3-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	1.05 Ω
Polarity	N-Channel
Power Dissipation	300 W
Threshold Voltage	3 V
Drain to Source Voltage (Vds)	1 kV
Rise Time	9.8 ns
Input Capacitance (Ciss)	2700pF @25V(Vds)
Fall Time	12 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	300W (Tc)
	Show
Material	Silicon
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
