The IXFN200N07 is a single N-channel enhancement-mode Power MOSFET with fast intrinsic diode (HiPerFET™). It features low static ON-resistance HDMOS™ process and high power density. It is suitable for DC-to-DC converters, synchronous rectification, battery chargers, DC choppers, switch-mode and resonant-mode power supplies.
International standard packages
MiniBLOC with aluminium nitride isolation
Rugged polysilicon gate cell structure
Unclamped inductive switching (UIS) rating
Low package inductance
Easy to mount
Space saving

Show

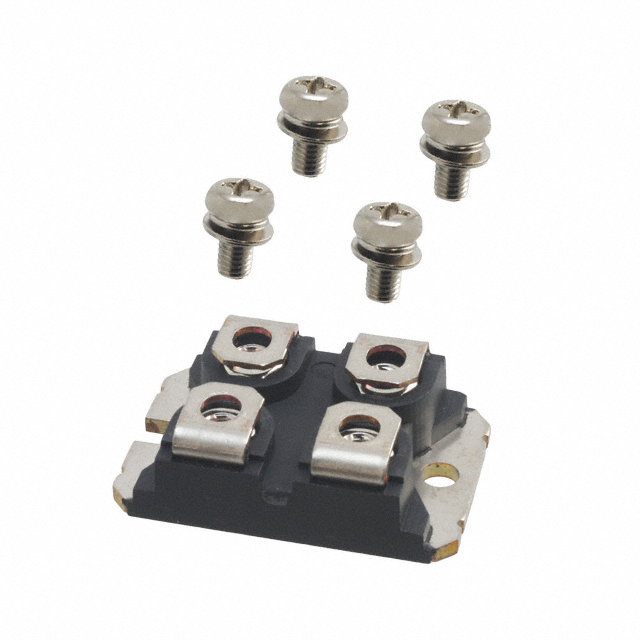

IXFN200N07 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-227-4
Voltage Rating (DC)	70.0 V
Current Rating	200 A
Power Rating	520 W
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.006 Ω
Polarity	N-Channel
Power Dissipation	520 W
Threshold Voltage	4 V
Drain to Source Voltage (Vds)	70 V
Breakdown Voltage (Drain to Source)	70 V
Continuous Drain Current (Ids)	200 A
Rise Time	60 ns
Isolation Voltage	2.50 kV
Input Capacitance (Ciss)	9000pF @25V(Vds)
Input Power (Max)	520 W
Fall Time	60 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	520W (Tc)
	Show
Size-Length	38.23 mm
Size-Width	25.42 mm
Size-Height	9.6 mm
Material	Silicon
Weight	44.0 g
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
