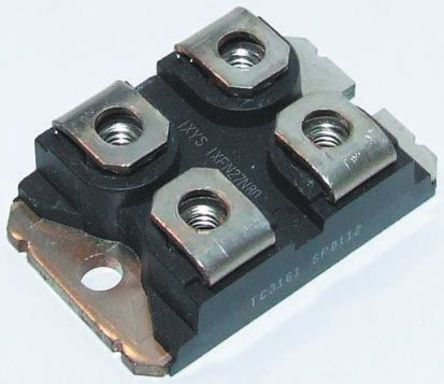

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

IXFN48N60P Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Number of Pins	4 Pin
Case/Package	SOT-227-4
Voltage Rating (DC)	600 V
Current Rating	48.0 A
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	0.14 Ω
Polarity	N-Channel
Power Dissipation	625 W
Threshold Voltage	5.5 V
Input Capacitance	8.86 nF
Gate Charge	150 nC
Drain to Source Voltage (Vds)	600 V
Breakdown Voltage (Drain to Source)	600 V
Continuous Drain Current (Ids)	40.0 A
Rise Time	25 ns
Input Capacitance (Ciss)	8860pF @25V(Vds)
Input Power (Max)	625 W
Fall Time	22 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	625000 mW
	Show
Size-Length	38.23 mm
Size-Width	25.42 mm
Size-Height	9.6 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2016/06/20
