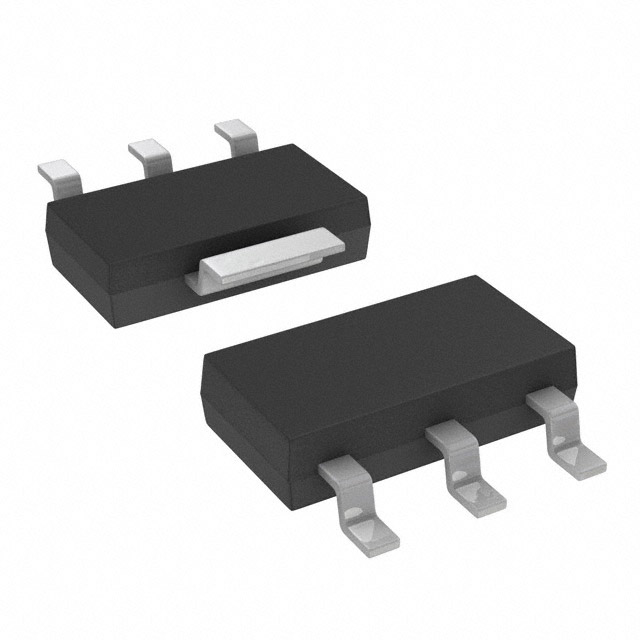

Image is for your reference only,please check specifications for details

NCV8450ASTT3G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC4162540
Category:
Power Distribution
Package:
TO-261-4
Datasheet:
Datasheet 3D Model
Description:
Power Switch Hi Side 1Out 0.5A 1Ω Automotive 4Pin(3+Tab) SOT-223 T/R
Stock Locations:
Availability:
296 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.77

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCV8450 is a fully protected High-Side Smart Discrete device with a Typical RDSOn of 1 Ohm and an internal current Limit of 0.8 A typical. The device can switch a variety of resistive, inductive, and capacitive loads.
Features
---
|
Short Circuit Protection
Thermal Shutdown with Automatic Restart
Overvoltage Protection
Integrated Clamp for Inductive Switching
Loss of Ground Protection
ESD Protection
Slew Rate Control for Low EMI
Very Low Standby Current
AEC-Q100/101 Qualified

Show

NCV8450ASTT3G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	TO-261-4
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Input Voltage (DC)	45.0 V
Output Current	0.8 A
Number of Positions	4 Position
Power Dissipation	1.6 W
Input Voltage (Min)	4.5 V
Output Current (Max)	500 mA
Number of Inputs	1 Input
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	45 V
	Show
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2017/07/07
ECCN Code	EAR99
