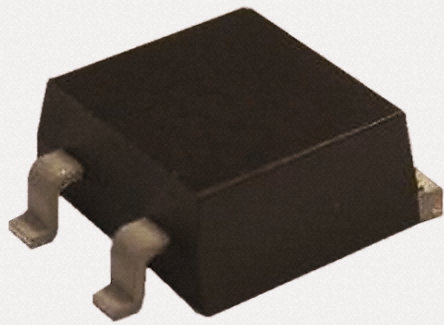

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

IXFT50N60P3 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-268-2
Polarity	N-CH
Power Dissipation	1040W (Tc)
Threshold Voltage	5 V
Drain to Source Voltage (Vds)	600 V
Continuous Drain Current (Ids)	50A
Rise Time	20 ns
Input Capacitance (Ciss)	6300pF @25V(Vds)
Fall Time	17 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1040W (Tc)
	Show
Size-Length	16.05 mm
Size-Width	14 mm
Size-Height	5.1 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
