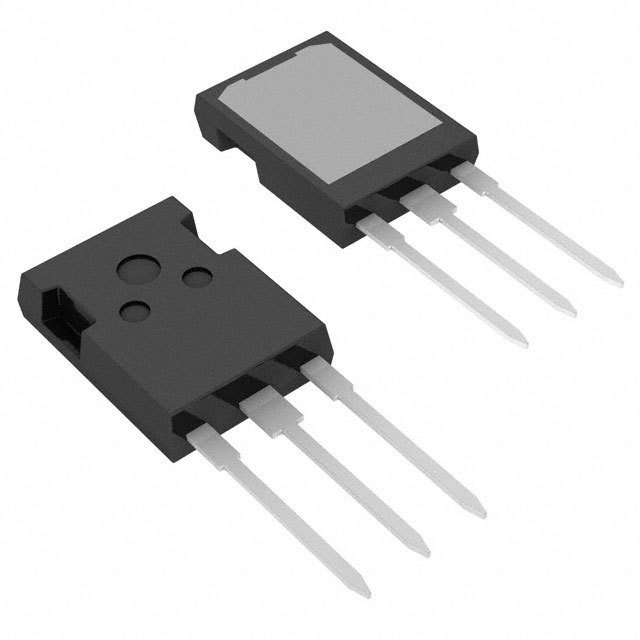

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

IXFX140N30P Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	24 mΩ
Power Dissipation	1.04 kW
Threshold Voltage	5 V
Drain to Source Voltage (Vds)	300 V
Breakdown Voltage (Drain to Source)	300 V
Rise Time	30 ns
Input Capacitance (Ciss)	14800pF @25V(Vds)
Fall Time	20 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	55 ℃
Power Dissipation (Max)	1040W (Tc)
	Show
Size-Length	16.13 mm
Size-Width	5.21 mm
Size-Height	21.34 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
