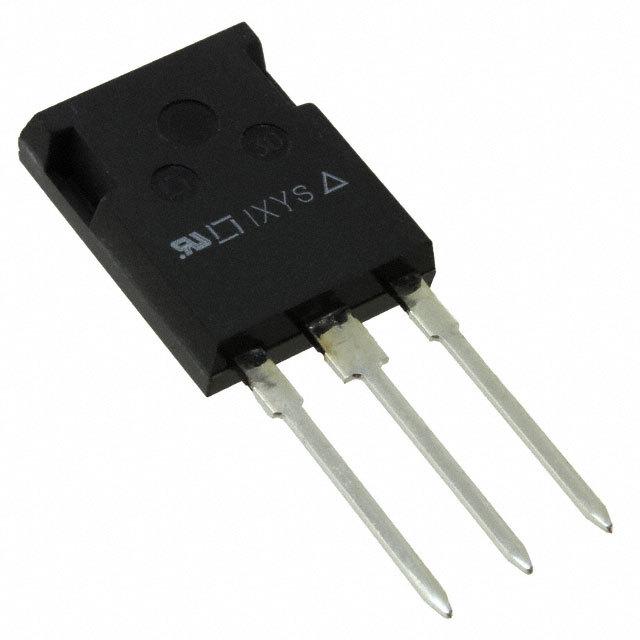

Image is for your reference only,please check specifications for details

IXGR32N170H1 - IXYS Semiconductor
Manufacturer:
IXYS Semiconductor
ManyChip's Part#:
MC108462400
Category:
IGBT Transistor, IGBT Module
Package:
TO-247
Datasheet:
Datasheet 3D Model
Description:
IXYS SEMICONDUCTOR IXGR32N170H1 IGBT Single Transistor, Isolated, 26A, 3.5V, 200W, 1.7kV, TO-247AD, 3Pins
Stock Locations:
Availability:
269 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The IXGR32N170H1 is a High Voltage IGBT with diode. It is suitable for DC choppers, capacitor discharge and pulse circuits.
Electrically isolated tab
High current handling capability
MOS gate turn-ON - drive simplicity
Rugged NPT structure
UL94V-0 Flammability rating

Show

IXGR32N170H1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247
Number of Positions	3 Position
Polarity	N-Channel
Power Dissipation	200 W
Rise Time	250 ns
Breakdown Voltage (Collector to Emitter)	1700 V
Reverse recovery time	230 ns
Input Power (Max)	200 W
Fall Time	250 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	200000 mW
	Show
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Obsolete
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
