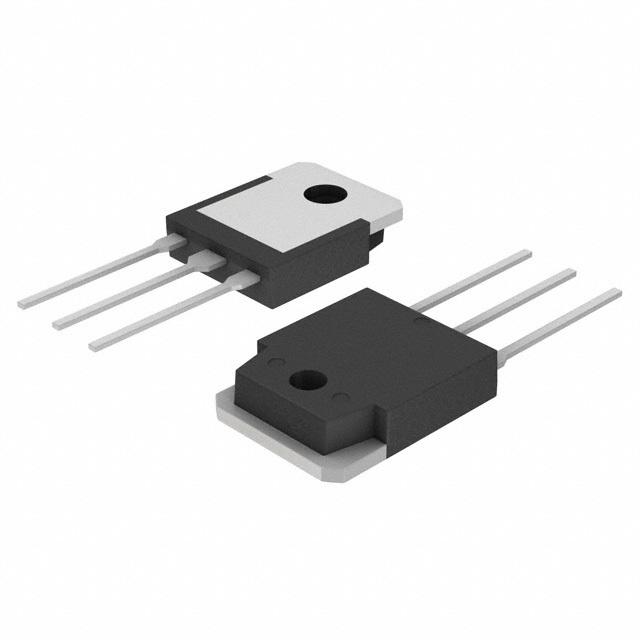

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The IXTQ40N50L2 is a LinearL2™ single N-channel enhancement-mode linear Power MOSFET with extended FBSOA. It is suitable for solid state circuit breakers, soft start controls, linear amplifiers, programmable loads and current regulators. It is designed for linear operation.
- International standard packages
- Avalanche rating
- UL94V-0 Flammability rating
IXTQ40N50L2 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-3-3 |
| Number of Channels | 1 Channel |
| Number of Positions | 3 Position |
| Drain to Source Resistance (on) (Rds) | 170 mΩ |
| Polarity | N-Channel |
| Power Dissipation | 540 W |
| Threshold Voltage | 2.5 V |
| Drain to Source Voltage (Vds) | 500 V |
| Breakdown Voltage (Drain to Source) | 500 V |
| Continuous Drain Current (Ids) | 40A |
| Rise Time | 133 ns |
| Input Capacitance (Ciss) | 10400pF @25V(Vds) |
| Fall Time | 44 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 540W (Tc) |
| Show | |
| Size-Length | 15.8 mm |
| Size-Width | 4.9 mm |
| Size-Height | 20.3 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
