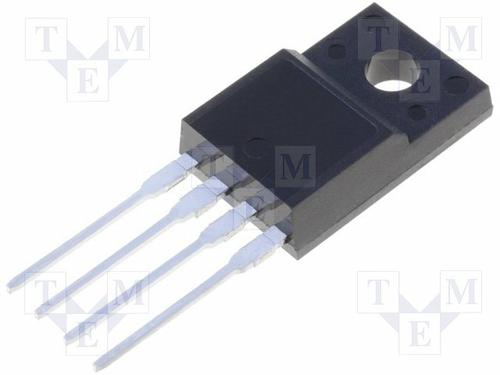

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

It"s easy to protect your high current circuit by using this KA5M0380RTU power switch by Fairchild Semiconductor. This charge controller has single output. This charge controller has an input voltage of -0.3 to 8.1 V. This device has a maximum power dissipation of 75000 mW. It features 4 Ohm switch on resistance. This device has a supply current of 7 mA and a minimum output current of 3(Max) A. Its maximum power dissipation is 75000 mW. This product comes in rail packaging to keep individual parts separated and protected. This charge controller has a minimum operating temperature of -40 °C and a maximum of 85 °C.

Show

KA5M0380RTU Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	TO-220-4
Operating Voltage	9V ~ 30V
Power Rating	75 W
Number of Outputs	1 Output
Output Voltage	800 V
Output Current	3 A
Breakdown Voltage	800 V
Supply Current	7 mA
Number of Channels	1 Channel
Power Dissipation	75 W
Switching Frequency	67 kHz
Duty Cycle	77 %
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	75000 mW
Supply Voltage	9.30 VDC
Input Voltage	9V ~ 30V
	Show
Size-Height	15.7 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
