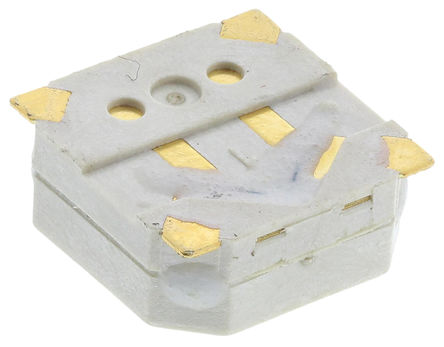

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The KSSGJ4B20 from Kingstate is a surface mount magnetic transducer.
- Rated voltage of 3.6V
- Operating voltage from 3V to 5V
- Maximum current consumption is 80mA
- Coil resistance of 20 ohm
- Minimum pressure level is 90dBA at 5cm
- Rated frequency is 2.73KHz
- Operating temperature range from -30°C to 75°C
- Dimension of L8.5 x W8.5 x H3.0
KSSGJ4B20 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | SMD |
| Frequency | 2.73 kHz |
| Supply Voltage (DC) | 3.00V (min) |
| Current Rating | 80 mA |
| Supply Current | 80 mA |
| Self Resonant Frequency | 2.73 kHz |
| Resonant Frequency | 2.73 kHz |
| Coil Resistance | 20 Ω |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -30 ℃ |
| Supply Voltage (Max) | 5 V |
| Supply Voltage (Min) | 3 VDC |
| Show | |
| Size-Length | 8.5 mm |
| Size-Width | 8.5 mm |
| Size-Height | 3.2 mm |
| Weight | 700 mg |
| Operating Temperature | -30℃ ~ 70℃ |
| Packaging | Tape & Reel (TR) |
| RoHS | Compliant with Exemption |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
