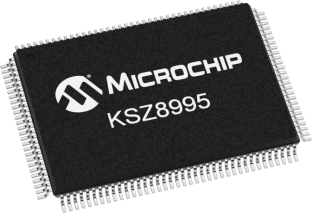

Image is for your reference only,please check specifications for details

KSZ8995MA - Microchip
Manufacturer:
Microchip
ManyChip's Part#:
MC11495612
Category:
Ethernet Controller IC, Ethernet Controller
Package:
QFP-128
Datasheet:
Datasheet 3D Model
Description:
MICROCHIP KSZ8995MA Ethernet Controller, 100Mbps, IEEE 802.3u, 1.7V, 1.9V, QFP, 128Pins
Stock Locations:
Availability:
2,312 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.21

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The KSZ8995MA is an integrated 5-port 10/100 Managed Switch provides an extensive feature set such as tag/port-based VLAN, quality of service (QoS) priority, management, MIB counters, dual MII interfaces and CPU control/data interfaces to effectively address both current and emerging Fast Ethernet applications. The KS8995MA contains five 10/100 transceivers with patented mixed-signal low-power technology, five media access control (MAC) units, a high-speed non-blocking switch fabric, a dedicated address lookup engine and an on-chip frame buffer memory. All PHY units support 10Base-T and 100Base-TX. In addition, two of the PHY units support 100Base-FX (ports 4 and 5).
Shared memory based switch fabric with fully nonblocking configuration
1.4Gbps High-performance memory bandwidth
VLAN ID tag/untag options, per-port basis
Flow control or drop packet rate limiting (ingress port)
Integrated MIB counters for fully compliant statistics gathering, 34 MIB counters per port
MAC-id Based security lock option
Broadcast storm protection with % control (global and per port basis)
Optimization for fibre-to-copper media conversion
Full-chip hardware power-down support
Wire-speed reception and transmission
Comprehensive LED support
7-wire SNI support for legacy MAC interface
Automatic MDI/MDI-X crossover for plug-and-play

Show

KSZ8995MA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	128 Pin
Case/Package	QFP-128
Number of Positions	128 Position
Data Rate	100 Mbps
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage (Max)	1.9 V
Supply Voltage (Min)	1.7 V
	Show
Size-Length	20 mm
Size-Width	14 mm
Size-Height	2.72 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Unknown
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR
