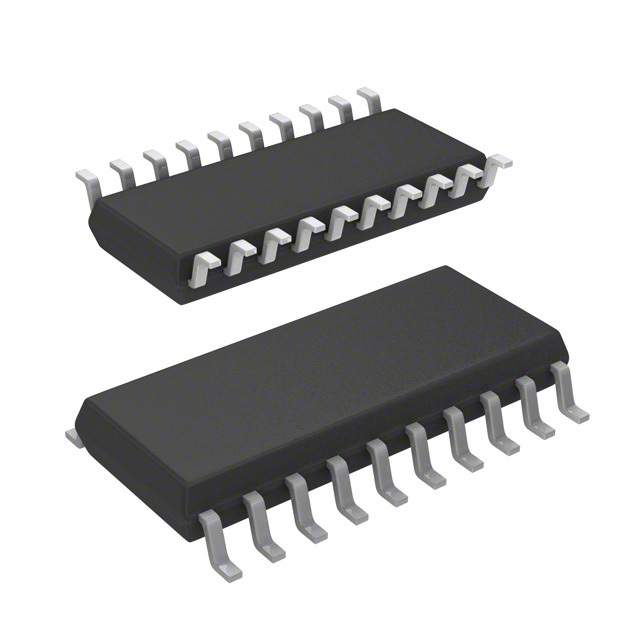

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The L297 Stepper Motor Controller IC generates four phase drive signals for two phase bipolar and four phase unipolar step motors in microcomputer-controlled applications. The motor can be driven in half step, normal and wawe drive modes and on-chip PWM chopper circuits permit switch-mode control of the current in the windings. A feature of this device is that it requires only clock, direction and mode input signals. Since the phase are generated internally the burden on the microprocessor, and the programmer, is greatly reduced. Mounted in DIP20 and SO20 packages, the L297 can be used with monolithic bridge drives such as the L298N or L293E, or with discrete transistors and darlingtons.
- **Key Features**
- RESET INPUT & HOME OUTPUT
- FEW EXTERNAL COMPONENTS
- NORMAL/WAVE DRIVE
- CLOCKWISE/ANTICLOCKWISE DIRECTION
- HALF/FULL STEP MODES
- PROGRAMMABLE LOAD CURRENT
- ENABLE INPUT
- SWITCHMODE LOAD CURRENT REGULATION
L297D013TR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | SOIC-20 |
| Supply Voltage (DC) | 7.00V (max) |
| Number of Outputs | 4 Output |
| Output Voltage | 0.8 V |
| Output Current | 10.0 mA |
| Supply Current | 50 mA |
| Number of Positions | 20 Position |
| Power Dissipation | 1000 mW |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 1000 mW |
| Supply Voltage | 4.75V ~ 7V |
| Supply Voltage (Max) | 7 V |
| Supply Voltage (Min) | 4.75 V |
| Show | |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
