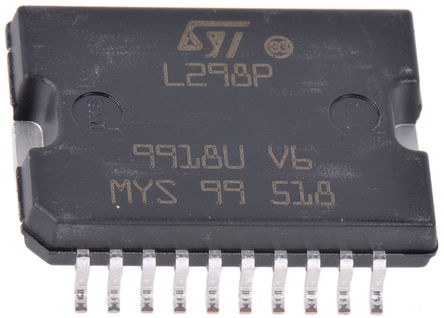

Image is for your reference only,please check specifications for details
- L298P013TR - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC114658
-
Category:Motor Driver
-
Package:PowerSO-20
-
Datasheet:Datasheet 3D Model
-
Description:L298 Series Dual Full Bridge 4A 46V Driver Surface Mount - PowerSO-20
-
Stock Locations:
-
Availability:248 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 3.22
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The L298 is an integrated monolithic circuit in a 15-lead Multiwatt and PowerSO20 packages. It is a high voltage, high current dual full-bridge driver designed to accept standard TTL logic levels and drive inductive loads such as relays, solenoids, DC and stepping motors. Two enable inputs are provided to enable or disable the device independently of the input signals. The emitters of the lower transistors of each bridge are connected together and the corresponding external terminal can be used for the connection of an external sensing resistor. An additional supply input is provided so that the logic works at a lower voltage.
- **Key Features**
- OPERATING SUPPLY VOLTAGE UP TO 46V
- LOW SATURATION VOLTAGE
- TOTAL DC CURRENT UP TO 4A
- LOGICAL \"0\" INPUT VOLTAGE UP TO 1.5 V (HIGH NOISE IMMUNITY)
- OVERTEMPERATURE PROTECTION
L298P013TR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | PowerSO-20 |
| Supply Voltage (DC) | 46.0V (max) |
| Number of Outputs | 4 Output |
| Output Current | 2 A |
| Supply Current | 24 mA |
| Number of Channels | 4 Channel |
| Number of Positions | 20 Position |
| Power Dissipation | 25000 mW |
| Rise Time | 0.7 µs |
| Switching Frequency | 25 kHz |
| Fall Time | 0.2 µs |
| Operating Temperature (Max) | 130 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Power Dissipation (Max) | 25000 mW |
| Supply Voltage | 4.5V ~ 7V |
| Supply Voltage (Max) | 46 V |
| Supply Voltage (Min) | 4.8 V |
| Show | |
| Size-Length | 16 mm |
| Size-Width | 11.1 mm |
| Size-Height | 3.3 mm |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
