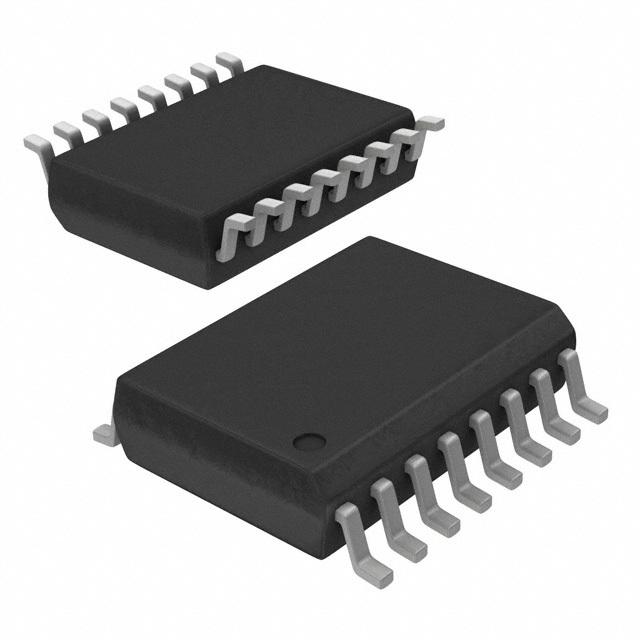

Image is for your reference only,please check specifications for details
- L4978D013TR - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC10262600
-
Category:Voltage Regulator
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 8V to 55V Step Down Single-Out 3.3V to 50V 2A 16Pin SO W T/R
-
Stock Locations:
-
Availability:821 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.65
Updated at 31/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Adjust the voltage level of your devices with this step down L4978D013TR DC to DC converter from STMicroelectronics. This converter"s single output can produce a current up to 2 A. Using the part will provide the power your application needs by requiring a voltage only of 8 V and not exceeding a voltage of 55 V. With an adjustable output that has a voltage of 3.3 to 50 V, this is power management at its best. This converter is 87(typ) % efficient. By operating at a line regulation of 10mV you can provide a constant voltage at your output. Its switching regulator has a frequency of 90 to 300 kHz. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This converter has an operating temperature range of -40 °C to 150 °C.
L4978D013TR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | SO-Wide-16 |
| Frequency | 300 kHz |
| Number of Outputs | 1 Output |
| Output Voltage | 3.3V ~ 50V |
| Output Current | 2 A |
| Number of Positions | 16 Position |
| voltage rating | 0.58 V |
| Output Power | 800 mW |
| Switching Frequency | 300 kHz |
| Topology | Buck |
| Input Voltage (Max) | 55 V |
| Input Voltage (Min) | 8 V |
| Output Voltage (Max) | 50 V |
| Output Voltage (Min) | 3.3 V |
| Output Current (Max) | 2 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | 1 % |
| Supply Voltage | 8 V |
| Supply Voltage (Max) | 55 V |
| Supply Voltage (Min) | 8 V |
| Input Voltage | 55 V |
| Show | |
| Size-Width | 7.6 mm |
| Size-Height | 2.35 mm |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
