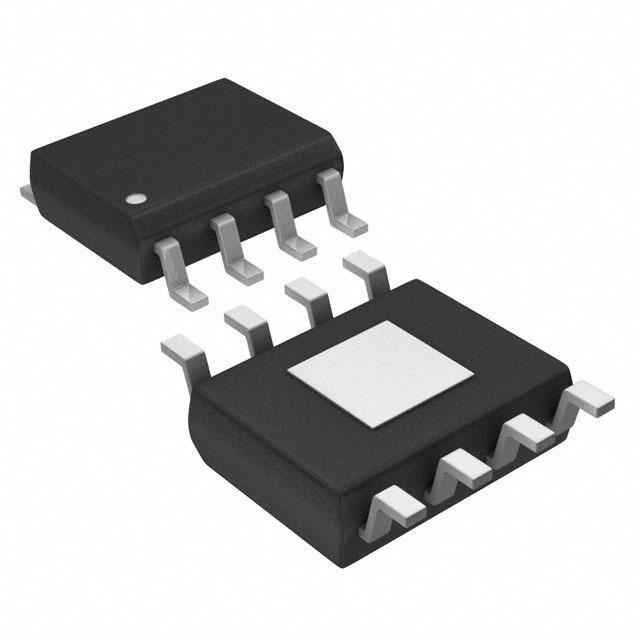

Image is for your reference only,please check specifications for details

L5973ADTR - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC6816178
Category:
DC to DC Converter
Package:
HSOP-8
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 4V to 36V Step Down Single-Out 1.235V to 35V 8Pin HSOP EP T/R
Stock Locations:
Availability:
9,702 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.77

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Adjust the voltage level of your devices with this step down L5973ADTR DC to DC converter from STMicroelectronics. This converter has single output. Use this part at voltages between 4 V and 36 V. With an adjustable output that has a voltage of 1.235 to 35 V, this is power management at its best. This converter is 90(typ) % efficient. To produce a constant current at your output, supply your circuit with a load regulation of 15mV and line regulation of 10mV. This part offers a switching frequency of 500(Typ) kHz in order to work properly. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This converter has a minimum operating temperature of -40 °C and a maximum of 150 °C.

Show

L5973ADTR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	HSOP-8
Frequency	500 kHz
Number of Outputs	1 Output
Output Voltage	1.235V ~ 35V
Output Current	2 A
Number of Positions	8 Position
Power Consumption	100 W
Quiescent Current	2.7 mA
Output Power	2.25 W
Switching Frequency	500 kHz
Input Voltage (Max)	36 V
Input Voltage (Min)	4 V
Output Voltage (Max)	35 V
Output Voltage (Min)	1.235 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	36 V
Supply Voltage (Min)	4 V
Input Voltage	36 V
	Show
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
