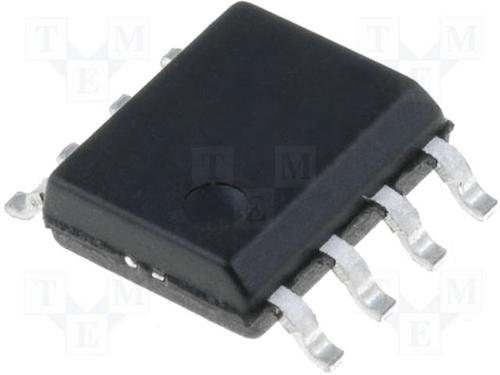

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

L78L15ACD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC
Number of Outputs	1 Output
Output Voltage	15 V
Output Current	100 mA
Number of Positions	8 Position
voltage rating	1.7V @40mA
Input Voltage (Max)	35 V
Input Voltage (Min)	23 V
Output Current (Max)	0.1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	0 ℃
Accuracy	±5 %
Input Voltage	35 V
	Show
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	Non-Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
