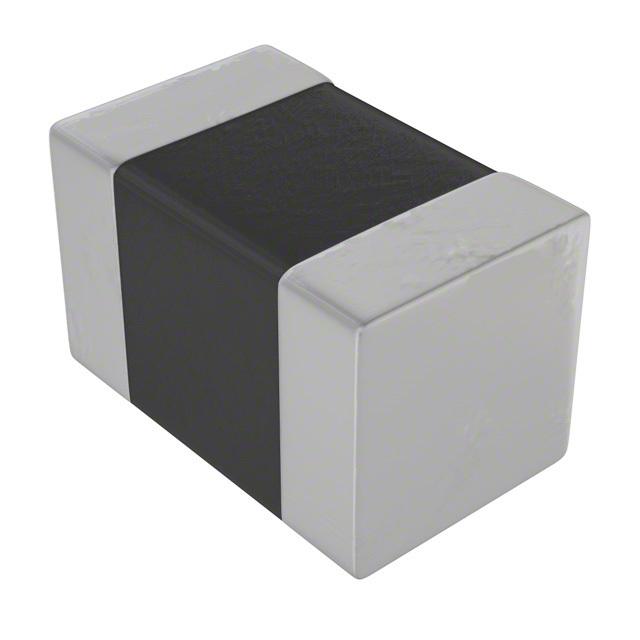

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 2.2µH Unshielded Wirewound Inductor 340mA 540mOhm 0806 (2016 Metric)
LBM2016T2R2J Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package | 0806 |
| Current Rating | 340 mA |
| Capacitance Tolerance | ±5 % |
| Halogen Free Status | Halogen Free |
| Inductance | 2.2 µH |
| Self Resonant Frequency | 75 MHz |
| Q-Factor | 30.0 |
| Part Family | LB |
| Shielding | No |
| Inductance Tolerance | ±5 % |
| Test Frequency | 7.96 MHz |
| DC Resistance (DCR) | 540 mΩ |
| Current Rating (DC) | 340 mA |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Resistance (DC Max) | 0.54 Ω |
| Show | |
| Size-Length | 2.2 mm |
| Size-Width | 1.8 mm |
| Size-Height | 1.8 mm |
| Operating Temperature | -40℃ ~ 105℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| Minimum Packing Quantity | 2000 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
