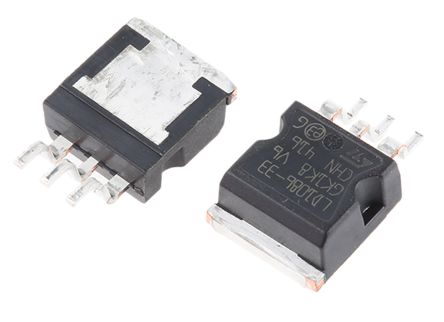

Image is for your reference only,please check specifications for details
- LD1086D2M33TR - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC908040
-
Category:Voltage Regulator
-
Package:TO-263-4
-
Datasheet:Datasheet 3D Model
-
Description:Fixed LDO Voltage Regulator, 6.3V to 30V, 1.3V Dropout, 3.3Vout, 1.5Aout, TO-263-3
-
Stock Locations:
-
Availability:264 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.2
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The LD1086D2M33TR is an adjustable and fixed low drop Positive Voltage Regulator capable of providing up to 1.5A of output current. Dropout is guaranteed at a maximum of 1.2V at the maximum output current, decreasing at lower loads. This is pin-to-pin compatible with the older 3-terminal adjustable regulator, but has offers better performance in terms of drop and output tolerance. Unlike PNP regulator, where a part of the output current is wasted as quiescent current, the quiescent current flows into the load and increases efficiency. Only a 10µF minimum capacitor is need for stability.
- Output tolerance of ±1% at 25°C and ±2% in full temperature range
- Internal power and thermal limit
- Pinout compatibility with standard adjustable voltage regulators
LD1086D2M33TR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | TO-263-4 |
| Supply Voltage (DC) | 30.0V (max) |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 30.0V (max) |
| Output Voltage | 3.3 V |
| Output Current | 1.5 A |
| Number of Positions | 3 Position |
| Quiescent Current | 10 mA |
| voltage rating | 1.3V @1.5A |
| Input Voltage (Max) | 30 V |
| Input Voltage (Min) | 6.3 V |
| Output Current (Max) | 1.5 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±1 % |
| Input Voltage | 30 V |
| Show | |
| Size-Length | 10.4 mm |
| Size-Width | 9.35 mm |
| Size-Height | 4.6 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
