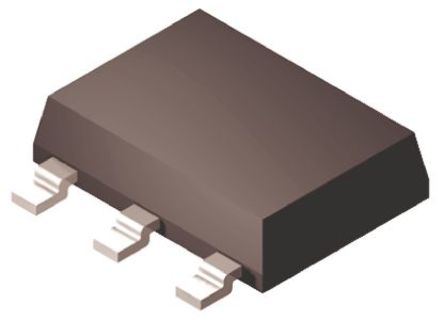

LD1117AS18TR - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC6987159
Category:
Voltage Regulator
Package:
TO-261-4
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS LD1117AS18TR Fixed LDO Voltage Regulator, 3.8V to 10V, 1.15V Dropout, 1.8Vout, 1Aout, SOT-223-3
Stock Locations:
Availability:
1,163 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.43

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LD1117AS18TR is a 1.8V fixed output low-dropout (LDO) Linear Regulator able to provide up to 1A of output current. High efficiency is assured by an NPN pass transistor. Only a very common 10µF minimum capacitor is needed for stability. Chip trimming allows the regulator to reach a very tight output voltage tolerance, within ±2% at 25°C.
1.15V Typical at IOUT = 1A, 25°C low dropout voltage
5mA Typical at 25°C very low quiescent current
Internal current and thermal limit
80dB Typical at 25°C high supply voltage rejection

Show

LD1117AS18TR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-261-4
Supply Voltage (DC)	15.0V (max)
Number of Outputs	1 Output
Input Voltage (DC)	8.00V (max)
Output Voltage	1.8 V
Output Current	1 A
Supply Current	10 mA
Number of Positions	3 Position
Power Dissipation	12 W
Quiescent Current	5 mA
voltage rating	1.15 V
Input Voltage (Max)	10 V
Input Voltage (Min)	3.8 V
Output Voltage (Min)	1.8 V
Output Current (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	12000 mW
Accuracy	±2 %
Input Voltage	≤15 V
	Show
Size-Length	6.5 mm
Size-Width	3.5 mm
Size-Height	1.8 mm
Operating Temperature	0℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
