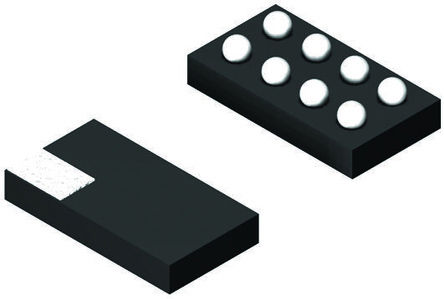

Image is for your reference only,please check specifications for details

LE25S161XATAG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC6794204
Category:
Flash Memory, Flash
Package:
WLCSP-8
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR LE25S161XATAG Flash Memory, SFDP, 16Mbit, 2048K x 8Bit, 70MHz, SPI, WLCSP, 8Pins
Stock Locations:
Availability:
284 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.21

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LE25S161 is a SPI bus flash memory device with a 16M bit (2048K × 8-bit) configuration. It uses a single power supply. While making the most of the features inherent to a serial flash memory device, the LE25S161 is housed in an 8-pin ultra-miniature package. All these features make this device ideally suited to storing program in applications such as portable information devices, which are required to have increasingly more compact dimensions. The LE25S161 also has a small sector erase capability which makes the device ideal for storing parameters or data that have fewer rewrite cycles and conventional EEPROMs cannot handle due to insufficient capacity.
Features | | Benefits
---|---|---
| | | | |
Operations power supply :
1.65 to 1.95V supply voltage range
| |
1.8 V Low voltage operation
Operating frequency : 70 MHz (max)
| |
High data transfer rate
Temperature range : -40 to +90 °C
| |
Fast erase and programming time
Serial interface : SPI mode 0, mode 3 supported
| |
High reliability
Electronic Identification :
JDEC ID, Device ID, Serial Flash Discoverable Parameter (SFDP)
| |
Sector size : 4 K bytes/small sector, 64 K bytes/sector
| |
Erase functions :
small sector erase (SSE), sector erase (SE), chip erase (CHE)
| |
Page program function : 256 bytes/page
| |
Status functions : Ready/Busy information, protect information
| |
Low operation current :
5.0 mA (Low-power program mode, typ)
3.5 mA(Low-Power Read mode, typ)
| |
Erase time : 10 ms (SSE, typ), 15 ms (SE, typ), 210 ms (CHE, typ)
| |
Page program time (tPP) :
0.4 ms/256 bytes (typ), 0.7 ms/256 bytes (max)
| |
Emergency shutdown of the current consumption :
transition to a standby state in less than 20 μs from the active by Write Suspend
transition to a standby state in less than 40 μs from the active by Software Reset
| |
High reliability :
100,000 erase/program cycles
20 years data retention period
| |

Show

LE25S161XATAG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	WLCSP-8
Supply Voltage (DC)	1.65V (min)
Supply Current	8 mA
Number of Positions	8 Position
Clock Speed	70 MHz
Number of Bits	8 Bit
Memory Size	2000000 B
Operating Temperature (Max)	90 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.65V ~ 1.95V
Supply Voltage (Max)	1.95 V
Supply Voltage (Min)	1.65 V
	Show
Size-Length	2.92 mm
Size-Width	1.53 mm
Size-Height	0.37 mm
Operating Temperature	-40℃ ~ 90℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Order guide
