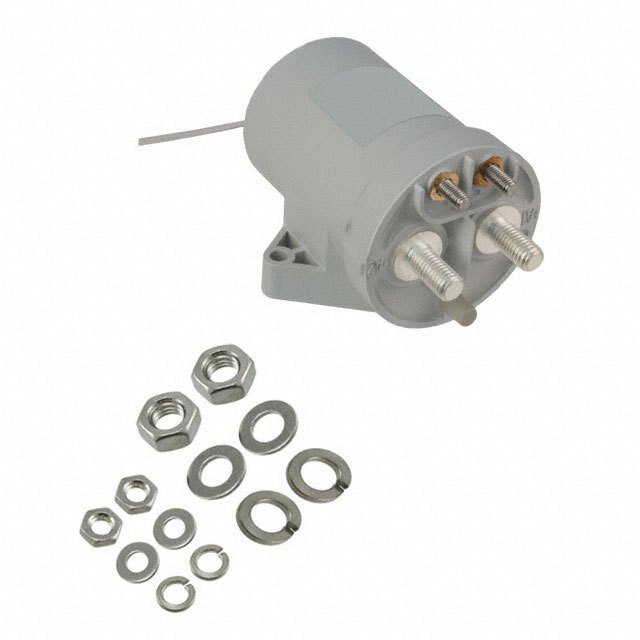

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The LEV200A4NAF is a Side-mount Contactor with SPST-NO-DM contact, compact epoxy-sealed resin enclosure, male 10mm x M8 threaded power terminals and studs #10-32 threaded connector. This LEV100-series contactor features hermetically sealed intrinsically safe, operates in explosive/harsh environments without oxidation or contamination of contacts, including long periods of non-operation. Versatile coil/power connections. Designed and built in accordance to AIAG QS9000.
- -40 to 65°C Operating temperature range
LEV200A4NAF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 4 Pin |
| Case/Package | - |
| Operating Voltage | 900 VDC |
| Current Rating | 500 A |
| Contacts Type | SPST-NO |
| Contact Current Rating | 500 A |
| Coil Voltage | 12 VDC |
| Coil Current | 1.1 A |
| Coil Resistance | 11 Ω |
| Current Rating (Max) | 500 A |
| Coil Voltage (DC) | 12 V |
| Show | |
| Size-Width | 77.7 mm |
| Size-Height | 94.0 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ELV Compliant | Compliant |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 85364900050;8536490050 |
| ECCN Code | EAR99 |
