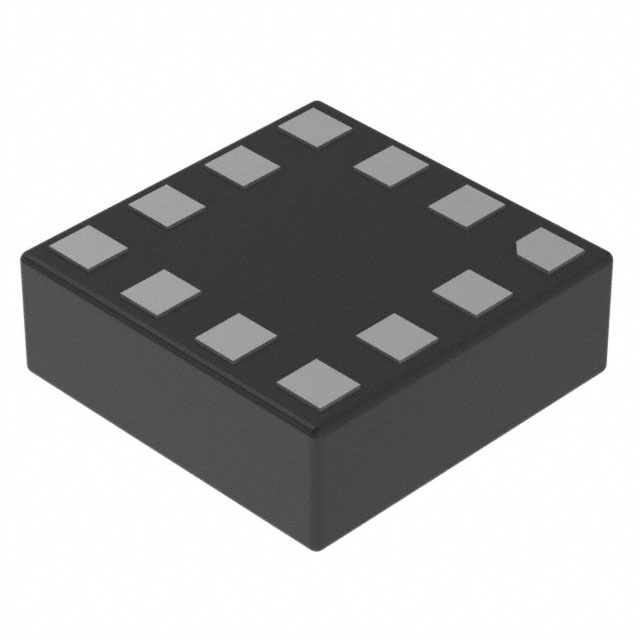

Image is for your reference only,please check specifications for details
- LIS2DS12TR - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC3633107
-
Category:Acceleration Sensor
-
Package:LGA-12
-
Datasheet:Datasheet 3D Model
-
Description:Accelerometer Triple ±2g/±4g/±8g/±16g 1.62V to 1.98V 0.061mg/digit to 0.488mg/digit 12Pin LGA T/R
-
Stock Locations:
-
Availability:10,395 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.31
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The LIS2DS12 is an ultra-low-power, high-performance three-axis linear accelerometer belonging to the “pico” family which leverages on the robust and mature manufacturing processes already used for the production of micromachined accelerometers.
- The LIS2DS12 has user-selectable full scales of ±2g/±4g/±8g/±16g and is capable of measuring accelerations with output data rates from 1 Hz to 6400 Hz.
- The LIS2DS12 has an integrated 256-level first-in, first-out (FIFO) buffer allowing the user to store data in order to limit intervention by the host processor.
- The embedded self-test capability allows the user to check the functioning of the sensor in the final application.
- The LIS2DS12 has a dedicated internal engine architecture in order to process internally motion and acceleration detection including free-fall, wakeup, single and double-tap detection, activity-inactivity, portrait and landscape detection, step counter and step detection along with significant motion detection.
- The LIS2DS12 is available in a small thin plastic land grid array package (LGA) and it is guaranteed to operate over an extended temperature range from -40 °C to +85 °C.
- **Key Features**
- Supply voltage, 1.62 V to 1.98 V
- Independent IOs supply (1.8 V) and supply voltage compatible
- Ultra-low power consumption
- ±2g/±4g/±8g/±16g full scale
- High-speed I2 C/SPI digital output interface
- Low noise
- 16-bit data output
- Embedded temperature sensor
- Self-test
- 256-level FIFO
- 10000 g high shock survivability
- ECOPACK® , RoHS and “Green” compliant
LIS2DS12TR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 12 Pin |
| Case/Package | LGA-12 |
| Number of Positions | 12 Position |
| Bandwidth | 6.25Hz ~ 3.2kHz |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 1.62V ~ 1.98V |
| Supply Voltage (Max) | 1.98 V |
| Supply Voltage (Min) | 1.62 V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | Compliant with Exemption |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
| HK STC License | NLR |
