Description
- Comparator General Purpose CMOS, DTL, ECL, MOS, Open-Collector, TTL TO-5-8
LM193AH Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |

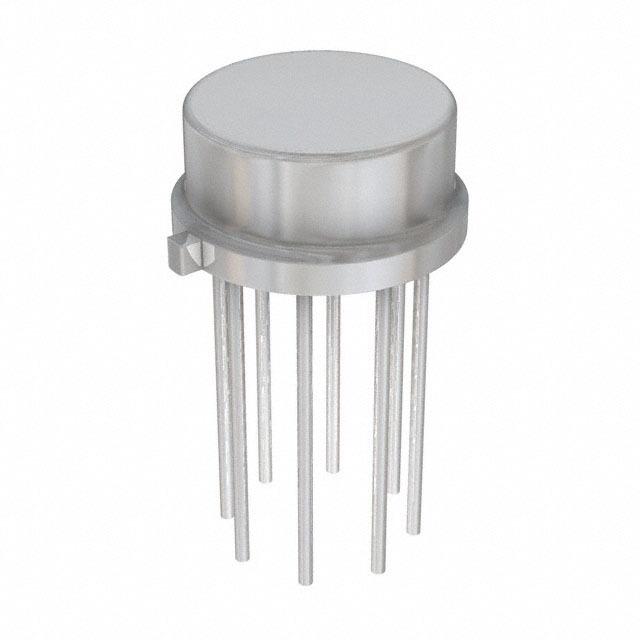

| Case/Package | TO-99-8 |
| Output Current | 16mA @5V |
| Supply Current | 1 mA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Power Dissipation | 660 W |
| Input Offset Voltage | 2 mV |
| Input Bias Current | 100 nA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 660 mW |
| Supply Voltage (Max) | 36 V |
| Supply Voltage (Min) | 2 V |
| Show | |
| Size-Height | 4.7 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Box |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
