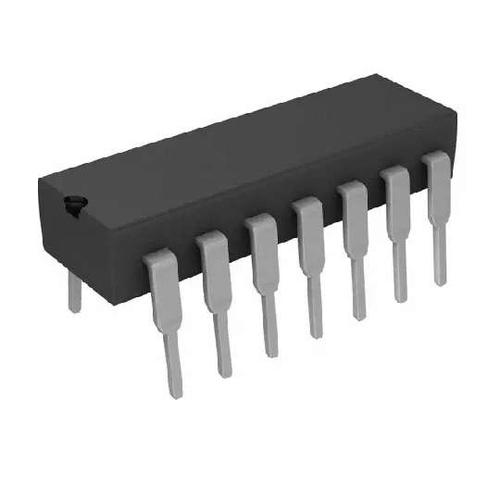

Image is for your reference only,please check specifications for details

LM2900N - TI
Manufacturer:
TI
ManyChip's Part#:
MC18723037
Category:
Operational Amplifier, OP Amp IC
Package:
DIP-14
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS LM2900N Operational Amplifier, 4 Amplifier, 2.5MHz, 20V/µs, 4.5V to 32V, ± 2.2V to ± 16V, DIP, 14Pins
Stock Locations:
Availability:
6 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.4

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LM2900N is a general purpose quadruple Norton Operational Amplifier consist of four independent, high-gain frequency-compensated Norton operational amplifiers that were designed specifically to operate from a single supply over a wide range of voltages. Operation from split supplies is also possible. The low supply current drain is essentially independent of the magnitude of the supply voltage. These devices provide wide band-width and large output voltage swing.
Wide range of supply voltages, single or dual supplies
Wide bandwidth
Large output voltage swing
Output short-circuit protection
Internal frequency compensation
Low input bias current
Green product

Show

LM2900N Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	DIP-14
Supply Voltage (DC)	32.0 V
Supply Current	6.2 mA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	14 Position
Power Dissipation	1150 mW
Bandwidth	2.5 MHz
Slew Rate	20.0 V/μs
Gain Bandwidth Product	2.5 MHz
Input Bias Current	30 nA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	2.5 MHz
Power Dissipation (Max)	1150 mW
Supply Voltage	4.5V ~ 32V
	Show
Size-Length	19.3 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Obsolete
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
