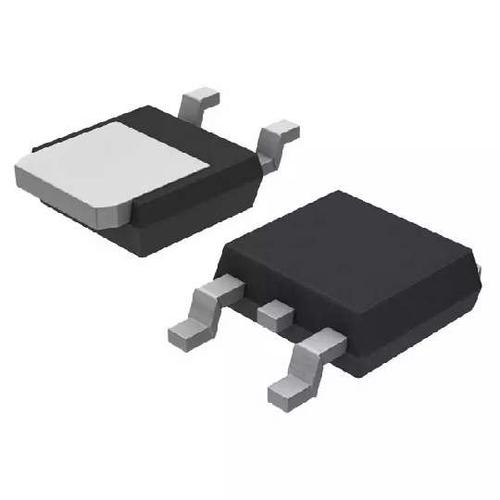

Image is for your reference only,please check specifications for details
- LM317MBDTRKG - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC1295644
-
Category:Voltage Regulator
-
Package:TO-252-3
-
Datasheet:Datasheet 3D Model
-
Description:Linear Voltage Regulator, Positive, Adjustable Output, 500mA Vout: 4%; TJ = -40℃ to 125℃, DPAK (SINGLE GAUGE) TO-252, 2500-REEL
-
Stock Locations:
-
Availability:5,137 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.16
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 500 mA Adjustable Output, Positive Voltage Regulator
- The LM317M is an adjustable three−terminal positive voltage regulator capable of supplying in excess of 500 mA over an output voltage range of 1.2 V to 37 V. This voltage regulator is exceptionally easy to use and requires only two external resistors to set the output voltage. Further, it employs internal current limiting, thermal shutdown and safe area compensation, making it essentially blow−out proof.
- Features
- •Output Current in Excess of 500 mA
- •Output Adjustable between 1.2 V and 37 V
- •Internal Thermal Overload Protection
- •Internal Short Circuit Current Limiting
- •Output Transistor Safe−Area Compensation
- •Floating Operation for High Voltage Applications
- •Eliminates Stocking Many Fixed Voltages
- •Pb−Free Packages are Available
- •NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes
LM317MBDTRKG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | TO-252-3 |
| Supply Voltage (DC) | 40.0V (max) |
| Halogen Free Status | Halogen Free |
| Number of Outputs | 1 Output |
| Output Voltage | 1.2V ~ 37V |
| Output Current | 500 mA |
| Number of Positions | 3 Position |
| Polarity | P-Channel |
| Input Voltage (Max) | 40 V |
| Input Voltage (Min) | 3 V |
| Output Voltage (Max) | 37 V |
| Output Voltage (Min) | 1.2 V |
| Output Current (Max) | 0.25 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±4 % |
| Input Voltage | ≤40 V |
| Show | |
| Size-Width | 6.22 mm |
| Size-Height | 2.38 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
| HK STC License | NLR |
