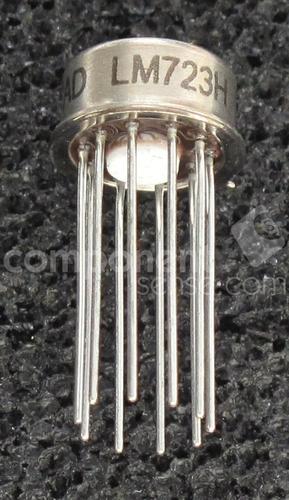

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Linear Voltage Regulator IC 1 Output 150mA TO-100-10
LM723H Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 10 Pin |
| Case/Package | TO-100-10 |
| Number of Outputs | 1 Output |
| Output Voltage | 2V ~ 37V |
| Output Current | 150 mA |
| Power Dissipation | 800 mW |
| Quiescent Current | 400 µA |
| voltage rating | 40.0 mV |
| Number of Regulated Outputs | 1 Output |
| Input Voltage (Max) | 40 V |
| Input Voltage (Min) | 9.5 V |
| Output Voltage (Max) | 37 V |
| Output Voltage (Min) | 2 V |
| Output Current (Max) | 0.15 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 800 mW |
| Input Voltage | 40 V |
| Show | |
| Size-Height | 4.7 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Box |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance | No SVHC |
