Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 8 Pin |

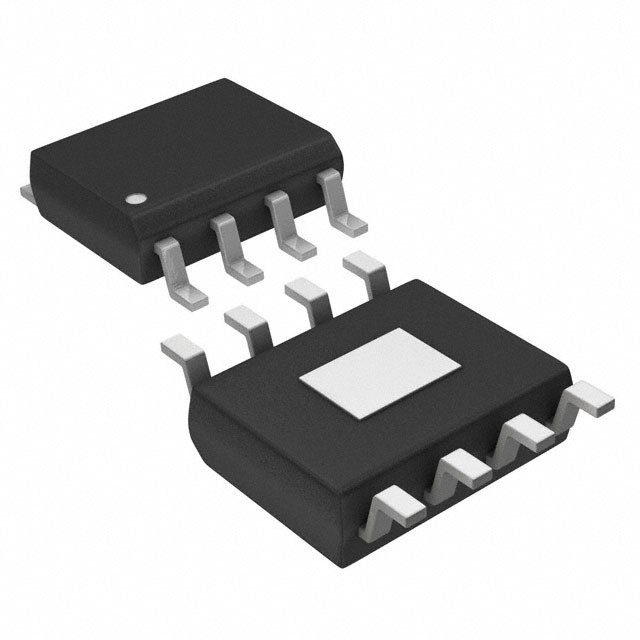

Case/Package | HSOP-8 |
Number of Outputs | 1 Output |
Output Voltage | 1V ~ 28V |
Output Current | 3 A |
Quiescent Current | 75.0 µA |
Number of Regulated Outputs | 1 Output |
Switching Frequency | 400 kHz |
Switching Current | 5 A |
Input Voltage (Max) | 36 V |
Input Voltage (Min) | 4.5 V |
Output Voltage (Max) | 28 V |
Output Voltage (Min) | 1 V |
Output Current (Max) | 3 A |
Operating Temperature (Max) | 125 ℃ |
Operating Temperature (Min) | -40 ℃ |
Supply Voltage (Min) | 4.5 V |
Input Voltage | 4V ~ 36V |
Show | |
Operating Temperature | -40℃ ~ 125℃ (TJ) |
Product Lifecycle Status | Active |
Packaging | Tape & Reel (TR) |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
ECCN Code | EAR99 |
