LMV358IDGKR TI - Operational Amplifiers(General Purpose)

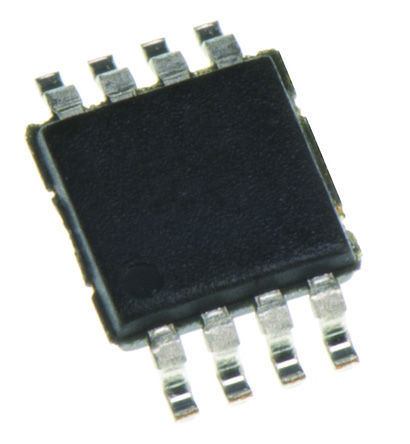

Image is for your reference only,please check specifications for details

LMV358IDGKR - TI
Manufacturer:
TI
ManyChip's Part#:
MC1830633
Category:
Operational Amplifiers(General Purpose)
Package:
VSSOP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS LMV358IDGKR – Операционный усилитель, двойной тип, 2 усилителя, частота работы 1 МГц, напряжение выходных сигналов 1 В/мукросекунда, диапазон напряжений выходных сигналов от 2.7 В до 5.5 В, формат патерна MSOP, количество контактов – 8.
Stock Locations:
Availability:
2,385 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.11

Updated at 20/10/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

LMV358IDGKR – это двойной операционный усилитель с низким напряжением выходных сигналов, специально разработанный для работы при низких напряжениях. Характеристики усилителя соответствуют или превосходят характеристики усилителя LM358, который работает от 5 до 30 В.
Отсутствие кроссоверного искажения сигнала.
Диапазон выходных сигналов выше напряжений выходных контактов.
Защита от электростатического заряда соответствует стандарту JESD 22.
Продукт имеет зеленый цвет, без веществ Sb/Br.
У этой устройства ограниченная встроенная защита от электростатического заряда. Во время хранения или обработки провода должны быть соединены между собой, а устройство помещать в проводящую пену, чтобы предотвратить повреждение MOS-гетеродинов электростатическим зарядом.

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSSOP-8
Supply Current	210 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	50 dB
Input Offset Drift	5.00 µV/K
Bandwidth	1 MHz
Slew Rate	1.00 V/μs
Gain Bandwidth Product	1 MHz
Input Offset Voltage	1.7 mV
Input Bias Current	15 nA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	1 MHz
Minimum CMRR Range	50 dB
Supply Voltage	2.7V ~ 5.5V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.97 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
