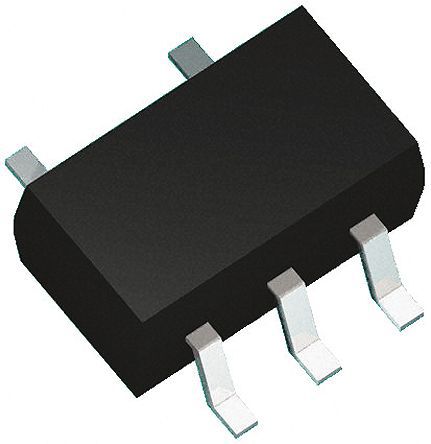

Image is for your reference only,please check specifications for details

LMV931SQ3T2G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC4436663
Category:
Operational Amplifier, OP Amp IC
Package:
SC-70-5
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR LMV931SQ3T2G Operational Amplifier, Single, 1 Amplifier, 1.5MHz, 0.48V/µs, 1.8V to 5.5V, SC-70, 5Pins
Stock Locations:
Availability:
1,465 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.63

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LMV931SQ3T2G is a low voltage single CMOS Operational Amplifier with rail-to-rail input and output. It can operate on single-sided power supplies (1.8 to 5.0V). It is ideal for battery-operated, portable applications such as notebook computers and handheld instruments. Rail-to-rail operation provides improved signal-to-noise performance.
Very low quiescent current
No output crossover distortion
No output phase-reversal from overdriven input
210µA/channel Maximum low quiescent current
10mA Maximum input current

Show

LMV931SQ3T2G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SC-70-5
Halogen Free Status	Halogen Free
Output Current	65 mA
Supply Current	116 µA
Number of Circuits	1 Circuit
Number of Positions	5 Position
Common Mode Rejection Ratio	70 dB
Bandwidth	1.5 MHz
Slew Rate	480 mV/μs
Gain Bandwidth Product	1.5 MHz
Input Offset Voltage	1 mV
Input Bias Current	1 nA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	1.5 MHz
Minimum CMRR Range	50 dB
Supply Voltage	1.8V ~ 5.5V
Supply Voltage (Max)	5.5V ~ 6V
	Show
Size-Length	2.2 mm
Size-Width	1.35 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
