LMX2492EVM - TI
Manufacturer:
TI
ManyChip's Part#:
MC7842685
Category:
Microprocessor Development Kit
Datasheet:
Datasheet 3D Model
Description:

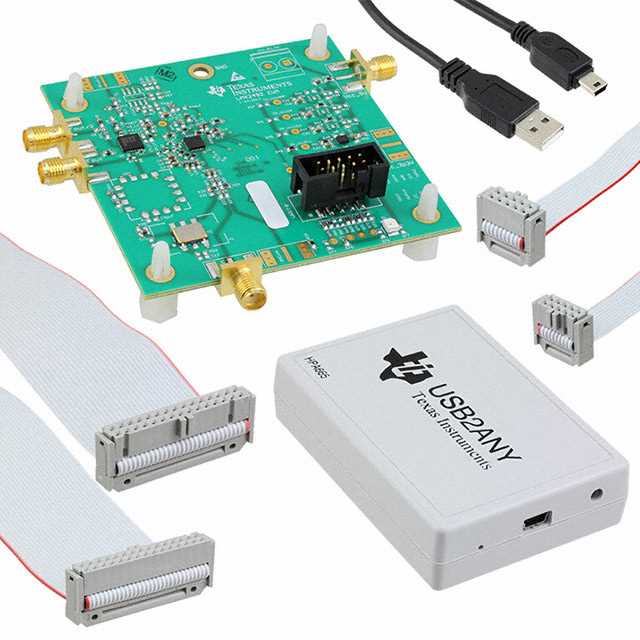

TEXAS INSTRUMENTS LMX2492EVM Evaluation Board, Ultralow Noise Frequency Synthesizer, Integrated VCO, FSK/PSK, SMA
Stock Locations:
Availability:
6 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 343.12

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LMX2492EVM from Texas Instruments is an LMX2492 evaluation module. It supports evaluation of the LMX2492 and LMX2492-Q1 which is an ultra low noise 14GHz wideband RF PLL with ramp/chirp generation, consisting of a delta sigma fractional N PLL, phase detector, programmable 5V charge pump and high frequency divider for the VCO. The LMX2492 supports a broad and flexible class of ramping capabilities. It is able to generate FSK and PSK modulation, triangular, saw tooth and customizable ramp pattern. In addition, it supports fine PLL resolution and fast ramp with up to 200MHz phase detector rate. The LMX2492 allows any of its registers to be read back through a 3-wire interface and includes digital lock detect, programmable charge pump current and output power. The LMX2492 can operate with a single 3.3V supply. Moreover, the 5V charge pump eliminates the need of external op-amp, leading to improved phase noise performance.
Normalized PLL noise in fractional mode is -227dBc/Hz
500MHz to 14GHz wideband PLL
3.15V to 5.5V charge pump PLL voltage
Integrated FMCW ramp/chirp generation
FSK/PSK modulation
Excellent ramp linearity
200MHz maximum phase detector frequency
Integrated LDO for digital supply
Frequency/phase modulation terminal
