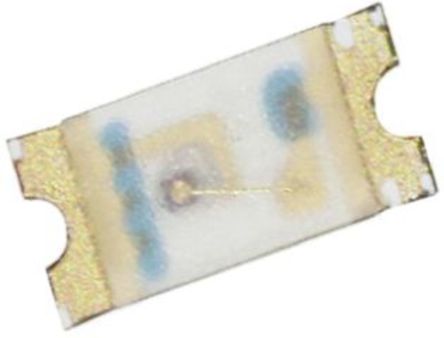

Image is for your reference only,please check specifications for details

LNJ237W82RA - Panasonic
Manufacturer:
Panasonic
ManyChip's Part#:
MC37444781
Category:
Based LED
Package:
0603
Datasheet:
Datasheet 3D Model
Description:
PANASONIC ELECTRONIC COMPONENTS LNJ237W82RA LED, Red, SMD, 0.8mm x 1.1mm, 5mA, 1.95V, 630nm
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LNJ237W82RA is a red Chip LED with SMD surface mounting, rectangular-shaped lens, 7mcd luminous intensity and 630nm wavelength type.
ESS II type

Show

LNJ237W82RA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	0603
Power Rating	55 mW
Number of Positions	2 Position
Forward Voltage	1.95 V
Wavelength	630 nm
Luminous Intensity	7 mcd
Peak Wavelength	645 nm
Test Current	5 mA
Forward Current	5 mA
Maximum Forward Voltage (Max)	2.3 V
Forward Current (Max)	20 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	30 ℃
Power Dissipation (Max)	55 mW
	Show
Size-Length	1.6 mm
Size-Width	0.8 mm
Size-Height	0.25 mm
Color	Red
Operating Temperature	-30℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
