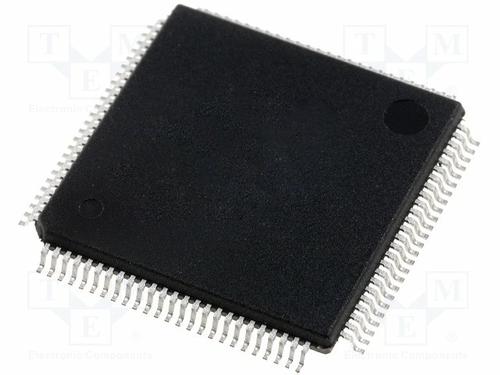

LPC1766FBD100 - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC15137729
Package:
LQFP-100
Datasheet:
Datasheet 3D Model
Description:
MCU 32Bit LPC1700 ARM Cortex M3 RISC 256KB Flash 3.3V 100Pin LQFP
Stock Locations:
Availability:
271 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.48

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Overview
The LPC1766 is a Cortex-M3 microcontroller for embedded applications featuring a high level of integration and low power consumption at frequencies of 100 MHz. Features include 256 kB of flash memory, 64 kB of data memory, Ethernet MAC, USB Device/Host/OTG, 8-channel DMA controller, 4 UARTs, 2 CAN channels, 3 SSP/SPI, 3 I2C, I2S, 8-channel 12-bit ADC, 10-bit DAC, motor control PWM, Quadrature Encoder interface, 4 general purpose timers, 6-output general purpose PWM, ultra-low power Real-Time Clock with separate battery supply, and up to 70 general purpose I/O pins. The LPC1766 is pin-compatible to the 100-pin LPC2368 ARM7 MCU
MoreLess
## Features
* ARM Cortex-M3 processor, running at frequencies of up to 100 MHz
* ARM Cortex-M3 built-in Nested Vectored Interrupt Controller (NVIC)
* Up to 256 kB on-chip flash programming memory
* Up to 64 kB On-chip SRAM
* In-System Programming (ISP) and In-Application Programming (IAP)
* Eight channel General Purpose DMA controller (GPDMA)
* Ethernet MAC with RMII interface and dedicated DMA controller
* USB 2.0 full-speed device/Host/OTG controller
* Four UARTs with fractional baud rate generation, internal FIFO, and DMA support
* CAN 2.0B controller with two channels
* SPI controller with synchronous, serial, full duplex communication
* Two SSP controllers with FIFO and multi-protocol capabilities
* Three enhanced I2C bus interfaces
* I2S (Inter-IC Sound) interface
* 70 General Purpose I/O (GPIO) pins with configurable pull-up/down resistors
* 12-bit/8-ch Analog/Digital Converter (ADC) with conversion rates up to 200 kHz
* 10-bit Digital/Analog Converter (DAC) with dedicated conversion timer and DMA
* Four general purpose timers/counters
* One motor control PWM with support for three-phase motor control
* Quadrature encoder interface that can monitor one external quadrature encoder
* One standard PWM/timer block with external count input
* Low power RTC with a separate power domain and dedicated oscillator
* WatchDog Timer (WDT)
* ARM Cortex-M3 system tick timer, including an external clock input option
* Repetitive interrupt timer provides programmable and repeating timed interrupts
* Each peripheral has its own clock divider for further power savings
* Standard JTAG test/debug interface for compatibility with existing tools
* Integrated PMU (Power Management Unit)
* Four reduced power modes: Sleep, Deep-sleep, Power-down, and Deep power-down
* Single 3.3 V power supply (2.4 V to 3.6 V)
* Four external interrupt inputs configurable as edge/level sensitive
* Non-maskable Interrupt (NMI) input
* Wake-up Interrupt Controller (WIC)
* Processor wake-up from Power-down mode via any interrupt
* Brownout detect with separate threshold for interrupt and forced reset
* Power-On Reset (POR)
* Crystal oscillator with an operating range of 1 MHz to 25 MHz
* 4 MHz internal RC oscillator trimmed to 1 % accuracy
* Code Read Protection (CRP) with different security levels
* Unique device serial number for identification purposes
## Target Applications
* eMetering
* Lighting
* Industrial networking
* Alarm systems
* White goods
* Motor control
## Features

Show

LPC1766FBD100 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	100 Pin
Case/Package	LQFP-100
Supply Voltage (DC)	2.40V (min)
Operating Voltage	2.4VDC ~ 3.6VDC
Clock Speed	100 MHz
RAM Memory Size	64 KB
Number of Bits	32 Bit
FLASH Memory Size	262144 B
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2.4 V
	Show
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
