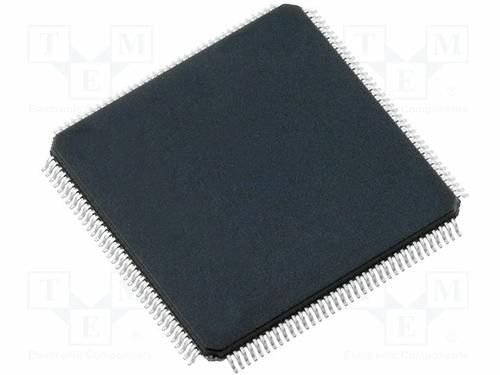

LPC2388FBD144 - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC9435604
Package:
LQFP-144
Datasheet:
Datasheet 3D Model
Description:
Single-chip 16Bit/32Bit microcontroller; 512KB flash with ISP/IAP, Ethernet, USB 2.0 device/host/OTG, CAN, and 10Bit ADC/DAC
Stock Locations:
Availability:
49 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 12.05

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Overview
The LPC2388 is an ARM7 microcontroller for embedded applications featuring a high level of integration and low power consumption at frequencies of 72 MHz. Features include 512 kB of flash memory, 98 kB of SRAM, Ethernet MAC, USB Device/Host/OTG, DMA controller, 4 UARTs, 2 CAN channels, 3 SSP/SPI, 3 I2C, I2S, 8-channel 10-bit ADC, 10-bit DAC, 2 PWM, 4 general purpose timers, low power Real-Time Clock with separate battery supply, and up to 160 general purpose I/O pins. The LPC2388 is pin-compatible to the LPC177x Cortex-M3 MCU series.
MoreLess
## Features
* ARM7TDMI-S processor, running at up to 72 MHz
* Up to 512 kB on-chip flash program memory
* 64 kB of SRAM on the ARM local bus for high performance CPU access
* 16 kB SRAM for Ethernet interface. Can also be used as general purpose SRAM
* 16 kB SRAM for general purpose DMA use also accessible by the USB
* Dual Advanced High-performance Bus (AHB) system
* EMC provides support for static devices
* Advanced Vectored Interrupt Controller (VIC)
* General Purpose DMA controller (GPDMA) on AHB
* Ethernet MAC with associated DMA controller
* USB 2.0 device/host/OTG with on-chip PHY and associated DMA controller
* Four UARTs with fractional baud rate generation
* CAN controller with two channels
* SPI controller
* Two SSP controllers, with FIFO and multi-protocol capabilities
* Three I2C-bus interfaces
* I2S (Inter-IC Sound) interface for digital audio input or output
* SD/MMC memory card interface
* 104 General purpose I/O pins with configurable pull-up/down resistors
* 10-bit ADC with input multiplexing among 8 pins
* 10-bit DAC
* Four general purpose timers/counters
* One PWM/timer block with support for three-phase motor control
* Real-Time Clock (RTC)
* 2 kB SRAM powered from the RTC power pin
* WatchDog Timer (WDT)
* Standard ARM test/debug interface for compatibility with existing tools
* Emulation trace module supports real-time trace
* Single 3.3 V power supply (3.0 V to 3.6 V)
* Four reduced power modes: Idle, Sleep, Power-down and Deep power-down
* Four external interrupt inputs configurable as edge/level sensitive
* Processor wake-up from Power-down mode via any interrupt
* Two independent power domains allow fine tuning of power consumption
* Each peripheral has its own clock divider for further power saving
* Brownout detect with separate thresholds for interrupt and forced reset
* On-chip power-on reset
* On-chip crystal oscillator with an operating range of 1 MHz to 25 MHz
* 4 MHz internal RC oscillator trimmed to 1 % accuracy
* On-chip PLL
* Boundary scan for simplified board testing
## Target Applications
* Industrial control
* Medical systems
* Protocol converter
* Communications
## Features

Show

LPC2388FBD144 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	LQFP-144
Operating Voltage	3VDC ~ 3.6VDC
Clock Speed	72 MHz
Number of Bits	32 Bit
FLASH Memory Size	512 KB
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
