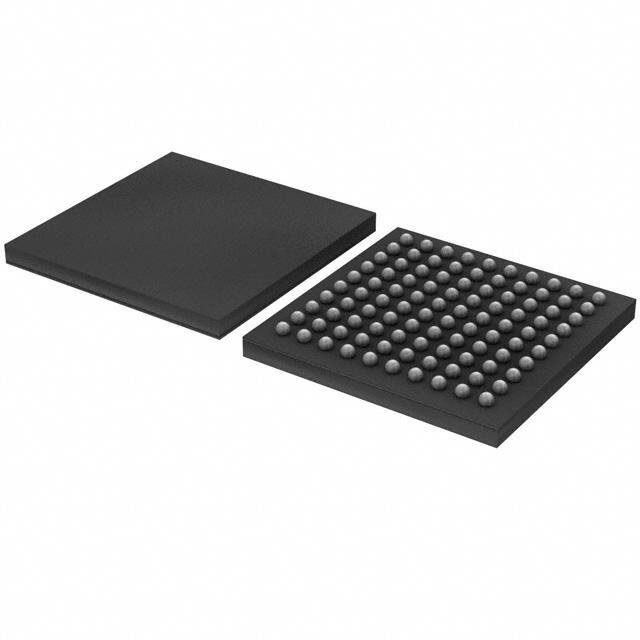

Image is for your reference only,please check specifications for details

LPC4322JET100E - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC83221000
Category:
Microcontroller, MCU IC
Package:
TFBGA-100
Datasheet:
Datasheet 3D Model
Description:
NXP LPC4322JET100E 32Bit Microcontroller, ARM Cortex-M4, 204MHz, 512KB, 104KB, 100Pins, TFBGA
Stock Locations:
Availability:
256 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 14.89

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LPC4322JET100E is an ARM Cortex-M4 based microcontrollers for embedded applications which include an ARM Cortex-M0 coprocessor. The ARM Cortex-M4 is a next generation 32-bit core that offers system enhancements such as low power consumption, enhanced debug features, and a high level of support block integration. The ARM Cortex-M4 CPU incorporates a 3-stage pipeline, uses a Harvard architecture with separate local instruction and data buses as well as a third bus for peripherals, and includes an internal prefetch unit that supports speculative branching.
Running at frequencies of up to 204 MHz
Built-in Memory Protection Unit supporting eight regions
Built-in Nested Vectored Interrupt Controller
Hardware floating-point unit.
Non-maskable Interrupt input
JTAG and Serial Wire Debug, serial trace, eight breakpoints, and four watch points.
System tick timer
Serial GPIO interface.
State Configurable Timer subsystem on AHB.
External Memory Controller supporting external SRAM, ROM, NOR flash, and SDRAM devices.
Secure Digital Input Output (SD/MMC) card interface
Crystal oscillator with an operating range of 1 MHz to 25 MHz

Show

LPC4322JET100E Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	100 Pin
Case/Package	TFBGA-100
Supply Voltage (DC)	2.20V (min)
Number of Positions	100 Position
Clock Speed	204 MHz
RAM Memory Size	104 KB
Number of Bits	32 Bit
FLASH Memory Size	512 KB
Number of ADCs	2 ADC
Number of Inputs and Outputs	49 Input IO
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1500 mW
Number of DACs	1 DAC
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2.2 V
	Show
Weight	165.64082583 mg
Operating Temperature	-40℃ ~ 105℃ (TA)
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
