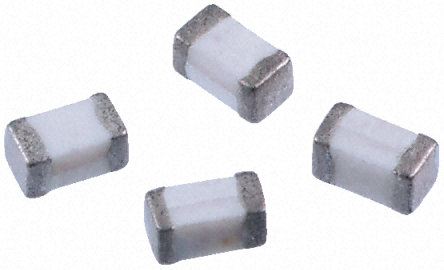

- LQM Series 0603 2200 nH ±10 % Tol. 15 mA SMT High Frequency Multilayer Inductor
LQM18NN2R2K00D Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package (SI) | 1608 |
| Case/Package | 0603 |
| Current Rating | 15 mA |
| Capacitance Tolerance | ±10 % |
| Inductance | 2.2 µH |
| Self Resonant Frequency | 50 MHz |
| Q-Factor | 35.0 |
| Part Family | LQM |
| Resistance | 1.15 Ω |
| Resonant Frequency | 50.0 MHz |
| Shielding | Yes |
| Inductance Tolerance | ±10 % |
| Test Frequency | 10 MHz |
| DC Resistance (DCR) | ≤1.15 Ω |
| Current Rating (DC) | 15 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Resistance (DC Max) | 1.15 Ω |
| Show | |
| Size-Length | 1.6 mm |
| Size-Width | 0.8 mm |
| Size-Height | 0.8 mm |
| Weight | 0.005 g |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| Minimum Packing Quantity | 4000 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
