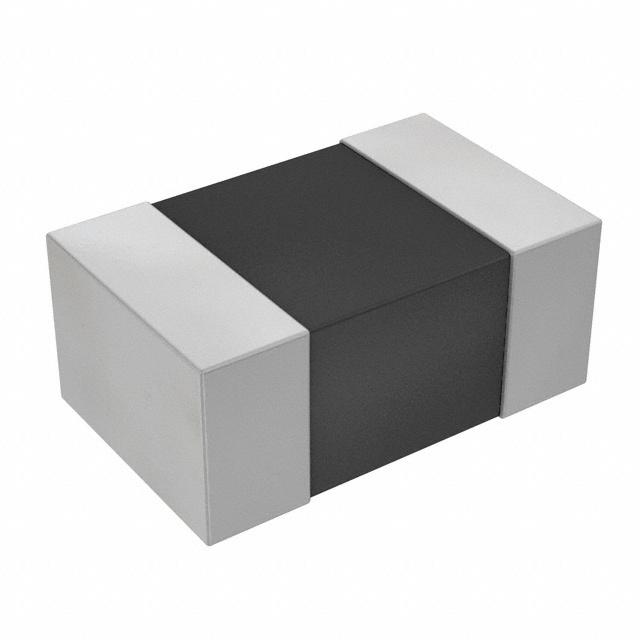

- 2.2µH Shielded Multilayer Inductor 1.3A 156mOhm Max 0805 (2012 Metric)
LQM21PN2R2MGHL Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package (SI) | 2012 |
| Case/Package | 0805 |
| Current Rating | 1.3 A |
| Capacitance Tolerance | ±20 % |
| Inductance | 2.2 µH |
| Self Resonant Frequency | 40 MHz |
| Part Family | LQM |
| Inductance Tolerance | ±20 % |
| Test Frequency | 1 MHz |
| DC Resistance (DCR) | ≤156 mΩ |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | 40 ℃ |
| Resistance (DC Max) | 156 Ω |
| Show | |
| Size-Length | 2 mm |
| Size-Width | 1.25 mm |
| Size-Height | 0.9 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| Minimum Packing Quantity | 3000 |
| RoHS | RoHS Compliant |
