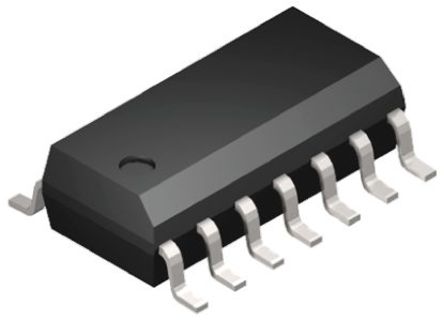

Image is for your reference only,please check specifications for details

MC14066BDR2G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC1133708
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
SOIC-14
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR MC14066BDR2G Analog Multiplexer, 4Circuits, 1.05KΩ, 3V to 18V, SOIC-14
Stock Locations:
Availability:
849 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.32

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MC14066BDR2G is a Quad Analog Switch/Multiplexer consisting four independent switches capable of controlling either digital or analog signals. This quad bilateral switch is useful in signal gating, chopper, modulator, de-modulator and CMOS logic implementation. The MC14066B is designed to be pin-for-pin compatible with the MC14016B, CD4016, CD4016, but has much lower ON resistance. Input voltage swings as large as the full supply voltage can be controlled via each independent control input.
Linearized transfer characteristics
Triple diode protection on all control inputs

Show

MC14066BDR2G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SOIC-14
Halogen Free Status	Halogen Free
Number of Outputs	4 Output
Contacts Type	SPST
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	14 Position
Number of Bits	4 Bit
Power Dissipation	500 mW
Bandwidth	65 MHz
Number of Inputs	4 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	500 mW
Supply Voltage	3V ~ 18V
	Show
Size-Length	8.75 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
