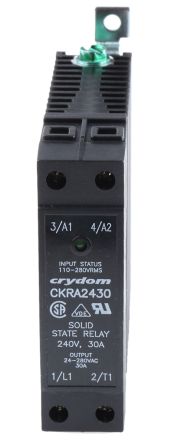

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The CKRA2430 is a DIN-rail mount Solid State Relay with SCR output for heavy industrial loads. It has zero-voltage turn-on switching, thermally conductive epoxy encapsulation and box clamp terminals.
Green LED status indicator display
4000Vrms Dielectric strength
10⁹R Minimum insulation resistance
-40 to 80°C Operating temperature range
Hazard of electric shock, explosion or arc flash. Disconnect all power before installing or working with this equipment. Verify all connections and replace all covers before turning ON power.

Show

CKRA2430 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	DIN Rail, DIN Panel
Number of Pins	4 Pin
Case/Package	SSR with Integrated Heat Sink
Current Rating	30 A
Output Voltage	24V ~ 280V
Output Current	30000 mA
Contacts Type	SPST-NO
Load Current	30 A
Input Current	5 mA
Power Dissipation	500 mW
Isolation Voltage	4000 v
Input Voltage (Max)	280 V
Input Voltage (Min)	90 V
Output Voltage (Max)	280 V
Input Current (Min)	5 mA
Load Current (Max)	30 Arms
Load Current (Min)	0.15 mArms
Operating Temperature (Max)	80 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	280 VAC
Operating Voltage (Min)	24 Vrms
Operating Voltage (Max)	280 Vrms
Input Voltage	90VAC ~ 280VAC
	Show
Size-Length	81.9 mm
Size-Width	22.5 mm
Size-Height	99 mm
Operating Temperature	-40℃ ~ 80℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
HTS Code	8536490080
ECCN Code	EAR99
