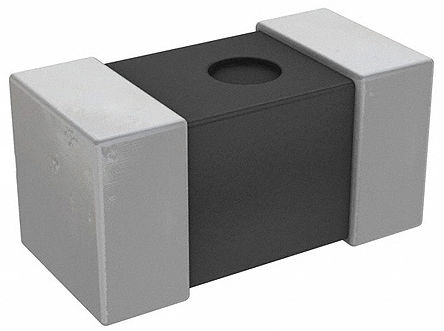

Image is for your reference only,please check specifications for details

Updated at 25/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

LQP03TN1N5B02D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	0201
Current Rating	600 mA
Inductance	1.5 nH
Self Resonant Frequency	15 GHz
Part Family	LQP
Inductance Tolerance	±0.1 nH
Test Frequency	500 MHz
DC Resistance (DCR)	≤150 mΩ
Current Rating (DC)	600 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Resistance (DC Max)	0.15 Ω
	Show
Size-Length	0.6 mm
Size-Width	0.3 mm
Size-Height	0.3 mm
Weight	0.0002 g
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	15000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
