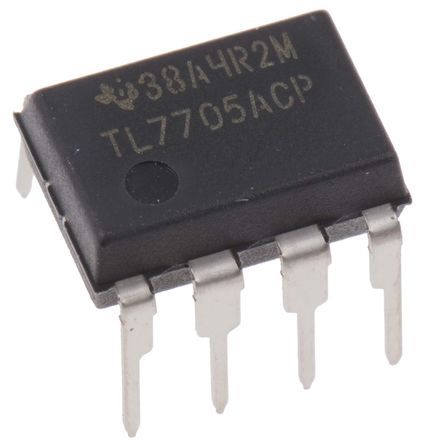

Image is for your reference only,please check specifications for details

TL7705ACP - TI
Manufacturer:
TI
ManyChip's Part#:
MC1592277
Category:
Power Monitor
Package:
PDIP-8
Datasheet:
Datasheet 3D Model
Description:
Supervisor, Reset IC and Sequencer Single Supply Voltage Supervisor for 5V Systems with Programmable Time Delay Processor Supervisor 4.55V 1 Active High/Active Low 8Pin PDIP
Stock Locations:
Availability:
111 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.38

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TL7705ACP is a single-supply Voltage Supervisor with programmable time delay for 5V systems. Designed specifically for use as reset controllers in microcomputer and microprocessor systems. The supply-voltage supervisor monitors the supply for under-voltage conditions at the SENSE input. During power up, the RESET output becomes active (low) when VCC attains a value approaching 3.6V. At this point (assuming that SENSE is above VIT+), the delay timer function activates a time delay, after which outputs RESET and RESET go inactive (high and low, respectively). When an under-voltage condition occurs during normal operation, RESET and RESET go active.
Power-on reset generator
Automatic reset generation after voltage drop
Wide supply-voltage range
Precision voltage sensor
Temperature-compensated voltage reference
Externally adjustable pulse duration
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

TL7705ACP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	PDIP-8
Number of Contacts	144 Contact
Supply Voltage (DC)	3.50V (min)
Output Voltage	5.00 V
Output Current	16 mA
Supply Current	3 mA
Number of Channels	1 Channel
Number of Positions	8 Position
Quiescent Current	1.8 mA
Threshold Voltage	4.55 V
Output Current (Max)	30 mA
Reset Threshold Voltage (Min)	4.5 V
Reset Threshold Voltage (Max)	4.6 V
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Accuracy	2 %
Supply Voltage	3.5.18 VDC
Supply Voltage (Max)	18 V
Supply Voltage (Min)	3.5 V
	Show
Size-Length	9.81 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Contact Material	Copper Alloy
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
