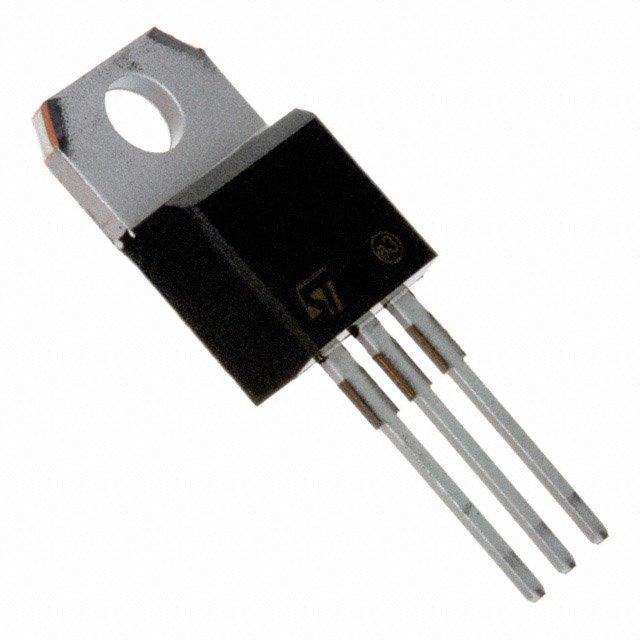

Image is for your reference only,please check specifications for details
Updated at 16/07/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- Dual center tap rectifier suited for Switched Mode Power Supplies and high frequency DC to DC converters. Packaged in DPAK, D2PAK, I2PAK, TO-220AB, TO-220FPAB or ISOWATT220AB, this device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications.
- FEATURES
- ■ SUITED FOR SMPS
- ■ LOW LOSSES
- ■ LOW FORWARD AND REVERSE RECOVERY TIME
- ■ HIGH SURGE CURRENT CAPABILITY
- ■ INSULATED PACKAGES: ISOWATT220AB /TO-220FPAB
- Insulation Voltage = 2000V DC
- Capacitance = 12 pF
STPR1020CT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | TO-220-3 |
| Voltage Rating (DC) | 200 V |
| Current Rating | 5.00 A |
| Forward Voltage | 990mV @5A |
| Reverse recovery time | 30 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Show | |
| Size-Length | 10.4 mm |
| Size-Width | 4.6 mm |
| Size-Height | 9.15 mm |
| Product Lifecycle Status | Obsolete |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
