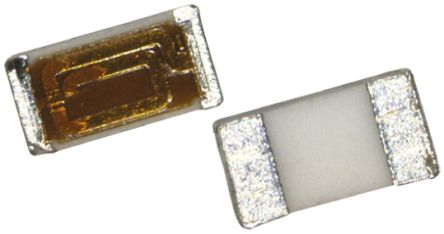

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- LQP Series 0402 4.3 nH ±0.1 nH Tol. 160 mA SMT High Frequency Chip Inductor
LQP15MN4N3B02D Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package (SI) | 1005 |
| Case/Package | 0402 |
| Current Rating | 160 mA |
| Inductance | 4.3 nH |
| Self Resonant Frequency | 6 GHz |
| Part Family | LQP |
| Resistance | 600 mΩ |
| Resonant Frequency | 6.00 GHz |
| Inductance Tolerance | ±0.1 nH |
| Test Frequency | 500 MHz |
| DC Resistance (DCR) | ≤600 mΩ |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Resistance (DC Max) | 0.6 Ω |
| Show | |
| Size-Length | 1 mm |
| Size-Width | 0.5 mm |
| Size-Height | 0.35 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| Minimum Packing Quantity | 10000 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
