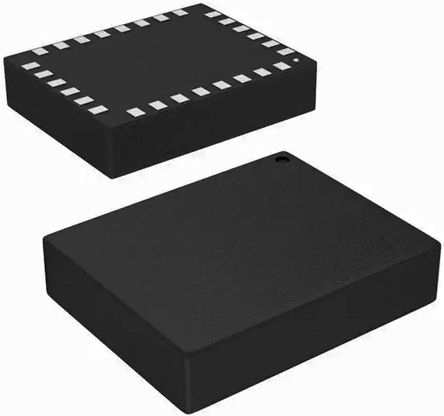

Image is for your reference only,please check specifications for details

LSM330DLCTR - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC14412593
Category:
Acceleration Sensor, Accelerometer
Package:
LGA-28L
Datasheet:
Datasheet 3D Model
Description:
IMUs - Inertial Measurement Units iNEMO 3D SIP Module 2.4V to 3.6V IO 1.8V
Stock Locations:
Availability:
104 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.52

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LSM330DLC is a system-in-package featuring a 3D digital accelerometer and a 3D digital gyroscope.
ST’s family of MEMS sensor modules leverages the robust and mature manufacturing processes already used for the production of micromachined accelerometers.
The various sensing elements are manufactured using specialized micromachining processes, while the IC interfaces are developed using a CMOS technology that allows the design of a dedicated circuit which is trimmed to better match the sensing element characteristics.
The LSM330DLC has dynamically user-selectable full scale acceleration range of ±2 g/±4 g/±8 g/±16 g and angular rate of ±250/±500/±2000 deg/sec.
The accelerometer and gyroscope sensors can be either activated or separately put in Low power/Power-down mode for applications optimized for power saving.
The LSM330DLC is available in a plastic land grid array (LGA) package.
**Key Features**
Analog supply voltage: 2.4 V to 3.6 V
Digital supply voltage IOs: 1.8 V
Low power mode
Power-down mode
3 independent acceleration channels and 3 angular rate channels
±2 g/±4 g/±8 g/±16 g dynamically selectable full scale
±250/±500/±2000 dps dynamically selectable full scale
SPI/I2 C serial interface (16-bit data output)
Programmable interrupt generator for free-fall and motion detection
ECOPACK® RoHS and “Green” compliant

Show

LSM330DLCTR Specifications
