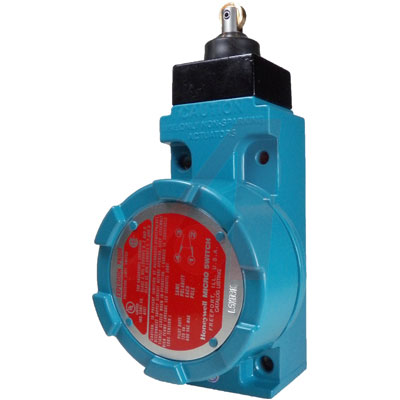

Image is for your reference only,please check specifications for details
- LSXD3K - Honeywell
-
Manufacturer:Honeywell
-
ManyChip's Part#:MC162064033
-
Category:Switch
-
Datasheet:Datasheet 3D Model
-
Description:Switch Limit N.O./N.C. SPDT Top Roller Plunger Conduit 10A 24VDC 17.8N Linear Screw Mount
-
Stock Locations:
-
Availability:9 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 318.25
Updated at 22/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- MICRO SWITCH™ LSX switches are for use either indoors or outdoors in hazardous atmospheres as they are a completely sealed, explosion-proof device. Mounting hole location and tracking is the same as the long established MICRO SWITCH ML-E1 explosion-proof switch. An optional mounting plate provides the same tracking and mounting as the standard HDLS. The majority of HDLS operating heads and circuitry options are available on the LSX. Standard HDLS levers are used, but because of explosion-proof requirements, only nylon rollers or other non-sparking material can be selected. Plunger and cat whisker types listed in the LSX order guide are non-sparking materials.
LSXD3K Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Screw Terminals, Chassis |
| Voltage Rating (DC) | 250 V |
| Actuator Type | Top Roller Plunger |
| Voltage Rating (AC) | 600 V |
| Current Rating | 10 A |
| Contacts Type | SPDT |
| Current Rating (Max) | 10A @24VDC |
| Operating Temperature (Max) | 93 ℃ |
| Operating Temperature (Min) | -12 ℃ |
| Voltage Rating (DC Max) | 24 V |
| Show | |
| Size-Height | 165.6 mm |
| Housing Material | Zinc Die-Cast |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| HTS Code | 8536509040 |
