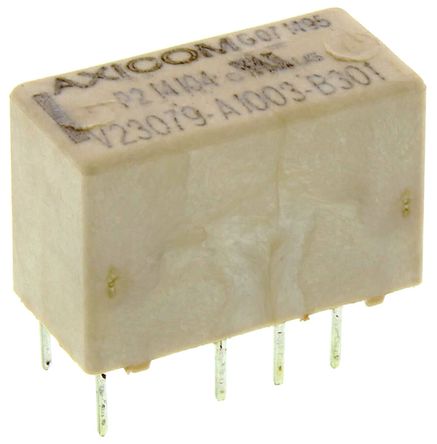

Image is for your reference only,please check specifications for details

V23079A1003B301 - TE Connectivity
Manufacturer:
TE Connectivity
ManyChip's Part#:
MC2693404
Category:
Industrial Relay
Package:
DIP
Datasheet:
Datasheet 3D Model
Description:
Signal Relay 12VDC 2A DPDT (( 14.5mm 7.2mm 9.8mm)) Through Hole Automotive Medical
Stock Locations:
Availability:
273 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.81

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

P2 Relay V23079: Standard telecom relay (ringing and test access). Slim line 15x7.5mm (.590x.295"). Max. switching current 5A. 2 form C bifurcated contacts (2 changeover contacts, 2 CO). Immersion cleanable. High sensitivity for low power consumption 140mW/ 70mW. Single coil version with surge voltage resistance between contact. and coil: 2.5kV (2/10μs) meets the Telcordia Requirement GR-1089, 1.5kV (10/160μs) meets FCC Part 68.

Show

V23079A1003B301 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	DIP
Current Rating	2 A
Insulation Resistance	>1000 MΩ
Coil Voltage	12 VDC
Coil Current	11.66 mA
Coil Resistance	1.029 kΩ
Current Rating (Max)	2 A
Coil Voltage (DC)	12 V
Coil Power	140 mW
Input Power (Max)	60W, 62.5VA
Switching Current (Max)	2 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	12 VDC
Maximum Contact Resistance (Max)	<50 mΩ
	Show
Size-Length	14.5 mm
Size-Width	7.2 mm
Size-Height	9.8 mm
Contact Material	Silver Nickel
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HTS Code	8536410050
ECCN Code	EAR99
