Description
- Silicon PNP Epitaxial Type (PCT Process)
- Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications
- With built-in bias resistors
- Simplify circuit design
- Reduce a quantity of parts and manufacturing process
- Complementary to RN1401~1406
RN2406 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 3 Pin |

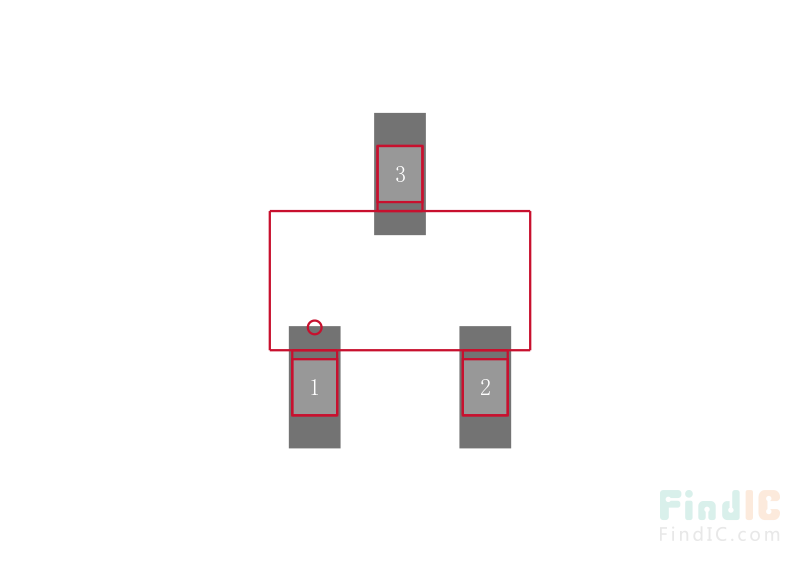

| Case/Package | S-Mini |
| Polarity | PNP |
| Breakdown Voltage (Collector to Emitter) | 50 V |
| Continuous Collector Current | 100mA |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Gain Bandwidth | 200 MHz |
| Power Dissipation (Max) | 200 mW |
| Show | |
| Product Lifecycle Status | Obsolete |
| RoHS | RoHS Compliant |
