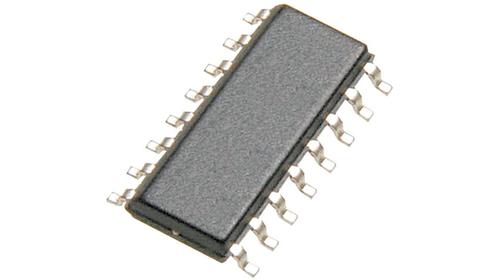

HEF4051BT - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC47471366
Category:
Multiplexer IC
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
IC 8Channel, SGL ENDED MULTIPLEXER, PDSO16, 3.9MM, PLASTIC, MS-012, SOT109-1, SOP-16, Multiplexer or Switch
Stock Locations:
Availability:
10,618 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.25

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The HEF4051BT is an 8-channel Analog Multiplexer/Demultiplexer with three address inputs (S1 to S3), an active low enable input (E\\), eight independent inputs/outputs (Y0 to Y7) and a common input/output (Z). The device contains eight bidirectional analog switches, each with one side connected to an independent input/output (Y0 to Y7) and the other side connected to a common input/output (Z). The analog inputs/outputs (Y0 to Y7 and Z) can swing between VDD as a positive limit and VEE as a negative limit. Unused inputs must be connected to VDD, VSS or another input. For operation as a digital multiplexer/demultiplexer, VEE is connected to VSS (typically ground).
Fully static operation
5V, 10V and 15V Parametric ratings
Standardized symmetrical output characteristics
Complies with JEDEC standard JESD 13-B

Show

HEF4051BT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	18.0 V
Number of Outputs	8 Output
Number of Circuits	1 Circuit
Number of Positions	16 Position
Number of Gates	1 Gate
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	70 MHz
Supply Voltage	4.5V ~ 15.5V
	Show
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
